10kv high Voltage grounding Wire grounding Rod 25 Square Transparent Soft Copper Wire Power Distribution Room high and Low Voltage grounding Wire

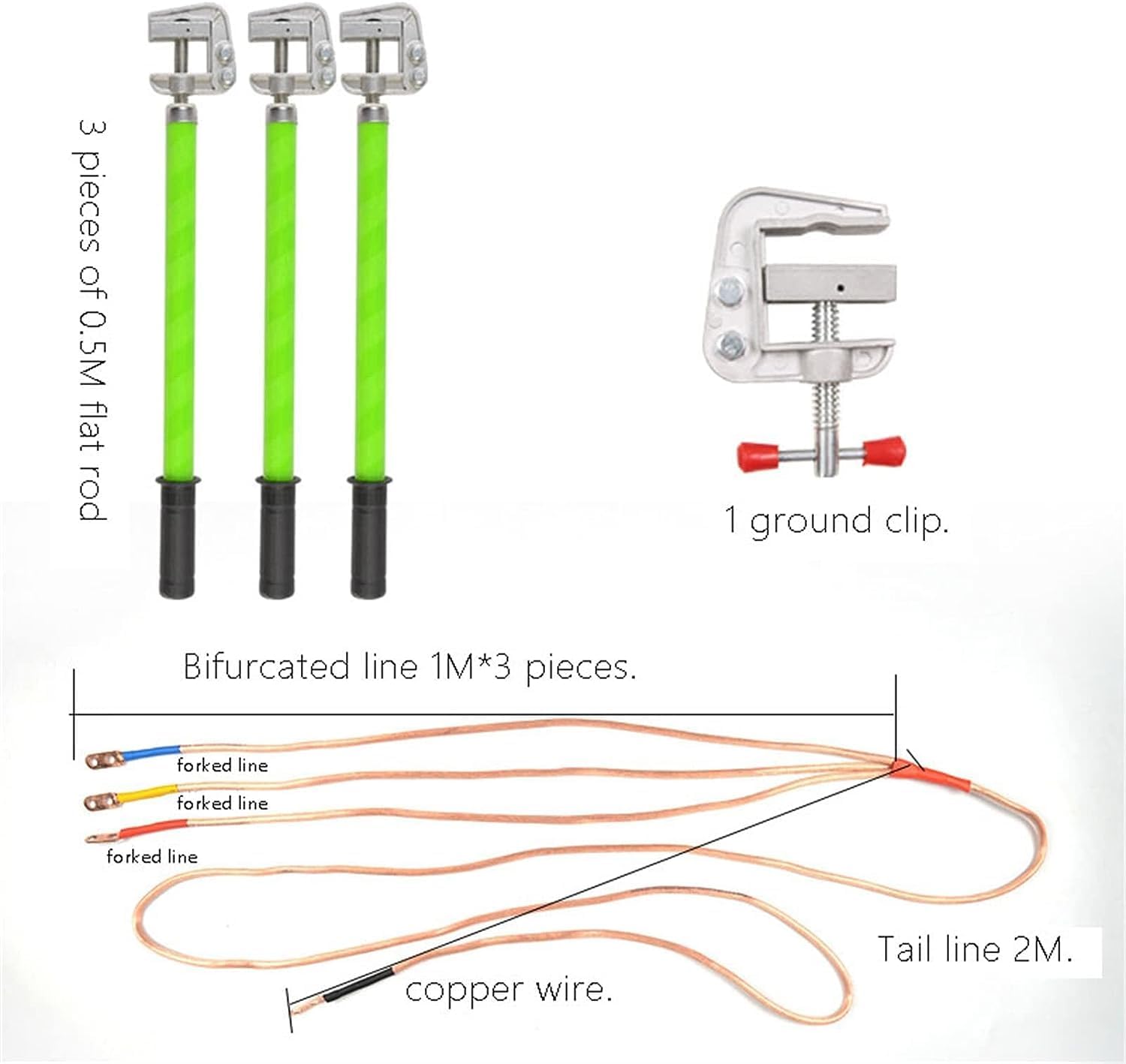

Name: Indoor high pressure suitProduct Style: Flat Spiral.Specification: 10kVGround Rod: Flat SpiralGround rod size: 0.5m/1MQuantity: 3Copper wire specification: national standard 25 square metersWiring level: 1m*3+3mAccessories: Aluminum clamp with ground joint.The kit includes:0.5m flat steel *3.Ground clip*1.Fork line 1m*3+3m

• Epoxy resin shaft: epoxy resin material, strong insulation, high safety.
• Composition of grounding wires: The material of the operating rod is glass fiber reinforced plastic epoxy resin plastic. Generally, there are 3 wires for each group of indoor high and low voltage, and 3 wires for outdoor high voltage. The leverage is also different for each voltage class.
• Indoor use: When used indoors, the power supply equipment is grounded, the terminal clamp adopts flat screw type, and the grounding method adopts ground connection.
• Outdoor use: The outdoor circuit adopts double spring type, and the grounding nail adopts the grounding nail.
• Precautions for grounding wire: The grounding wire is the grounding end first, and then the conductor end. The grounding wire must be in good contact and reliable. The order of removing the grounding wire should be reversed. Use insulating gloves and insulating rods when installing or removing the grounding wire.
