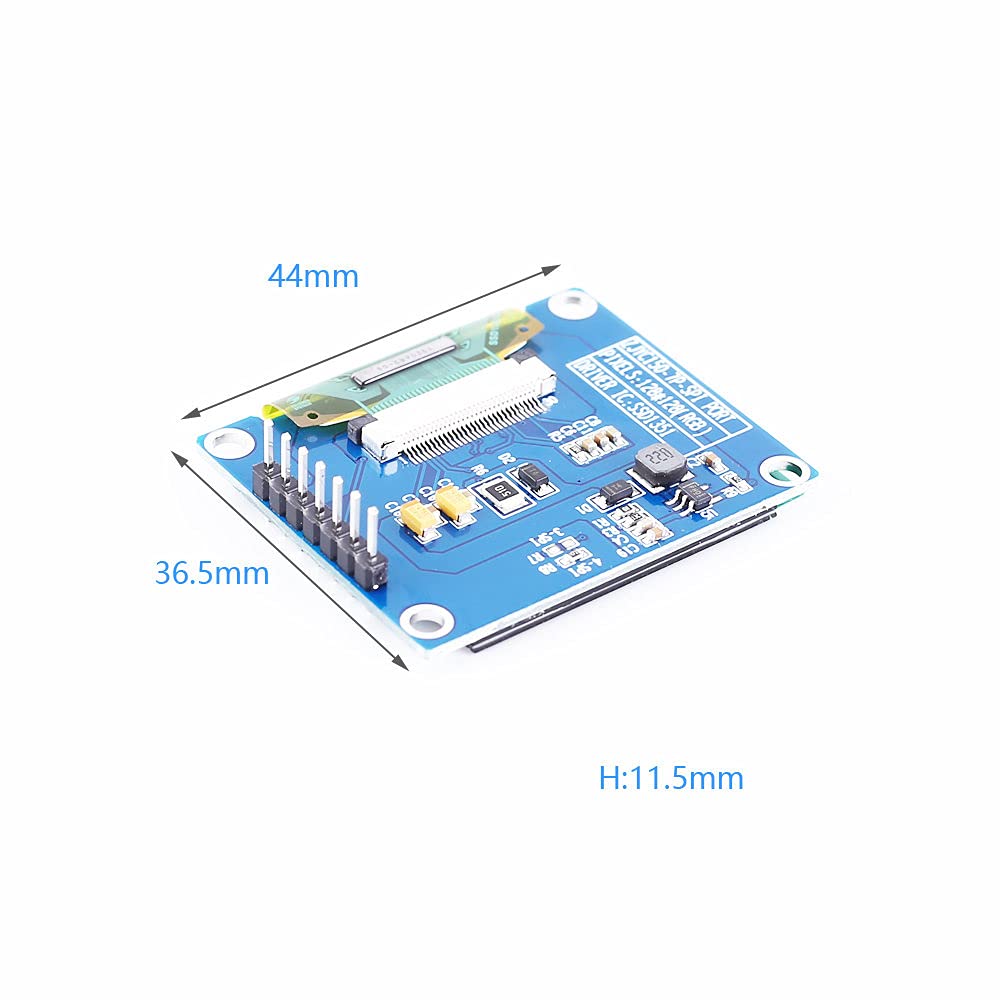

1.5inch 128x128 SPI RGB OLED Display Screen Module 65K SSD1351 Driver 128x128 3.3V Power
Product details
| Management number | 212348893 | Release Date | 2026/04/06 | List Price | $12.35 | Model Number | 212348893 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1.Descriptions: It is a 1.5 inch OLED display screen module.It is a color display that can adjust the brightness.2.Feature: 1>.RGB display 2>.Adjust brightness 3>.Full view 4>.OLCD display 5>.High Definition3.Parameter: 1>.Product Name:Display Screen Module 2>.Product Material:Highlight PM OLED 3>.Work Voltage:3.3V 4>.Display Size:1.5inch 5>.Product Resolution: 128*128 6>.Interface Type:SPI output 7>.Driver Chip:SSD1351 8>.Display Color:RGB 9>.Number of Pins:7 10>.Work Temperature:-40℃~85℃ 11>.Work Humidity:5%~95%RH 12>.Model Size:44*36.5*11.5mm4.Common Pin: 1>.GND:Power negative 2>.VCC:Input power supply positive 3.3V 3>.SCL:SPI clock terminal 4>.SDA:SPI data terminal 5>.RES:OLED screen reset terminal (need to reset once after power on) 6>.DC:Data/command selection terminal 7>.CS:Enable signal(Active low)5.Package: 1>.1pcs OLED Display Screen Module
- 1.5inch 128x128 SPI RGB OLED Display Screen Module 65K SSD1351 Driver 128x128 3.3V Power
| Manufacturer | DIYElectronic |
|---|
