288 Furnace Control Board Replacement for Rheem 62-24084-82 Furnace Control Circuit Ignition Board Module

Installation precautions1. Please turn off the power and wear isolation gloves before installation2. It is best to take photos and label them before dismantling the coil for easy viewing3. If your new circuit board has screw terminals for thermostat wires, consider placing some crimping shovel terminals on your static wires before starting4.If your stove is old and lacks a flame sensor, you will need an additional kitInstallation method1. Disconnect the power supply of the furnace2. Remove the wires and carefully label them to ensure they are placed back in the correct position3. Replace the original circuit board and connect the correct coil (the coil is the same but the installation position may be slightly different)4. Ignition test (the circuit board has three bright LEDs to display power, ignition, and fault detection)

• Replace Module:288 furnace controller for 62-24084-82 furnace control circuit ignition board
• Function: Real time monitoring of pressure switches, deployment and limit switches, control of air valves, induction wheel traction motors, circulating blowers, and hot surface igniters

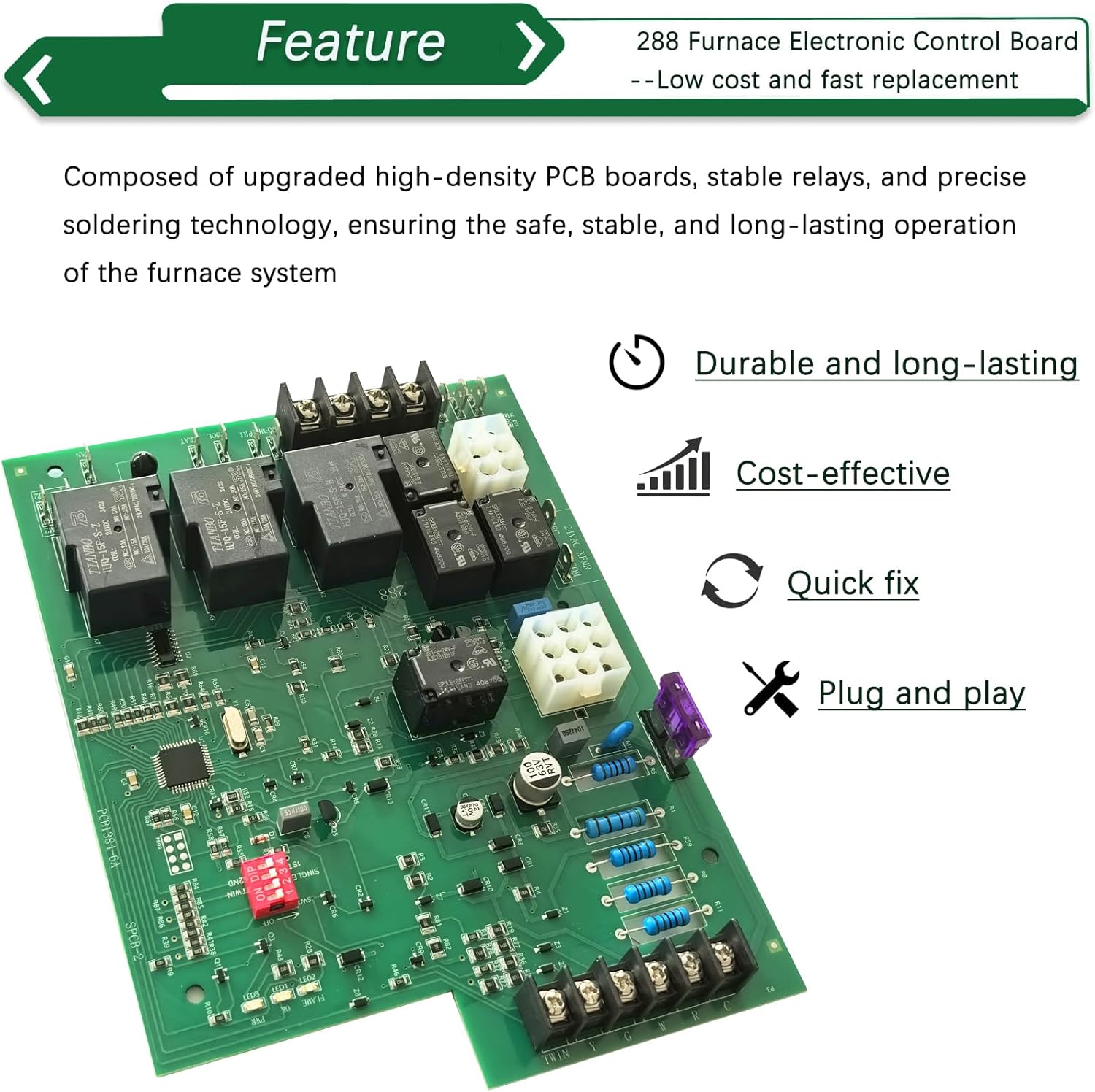

• Material: Composed of upgraded high-density PCB boards, stable relays, and precise soldering technology, ensuring the safe, stable, and long-lasting operation of the furnace system
• How to install: Shutoff the valve for gas and disconnected power to unit and then,Disconnected each wire and then removed the old board,connected the wires and installed the board(Suggest taking a picture of the original route map)
• Attention: If your furnace is too old, an additional flame sensor kit is required
