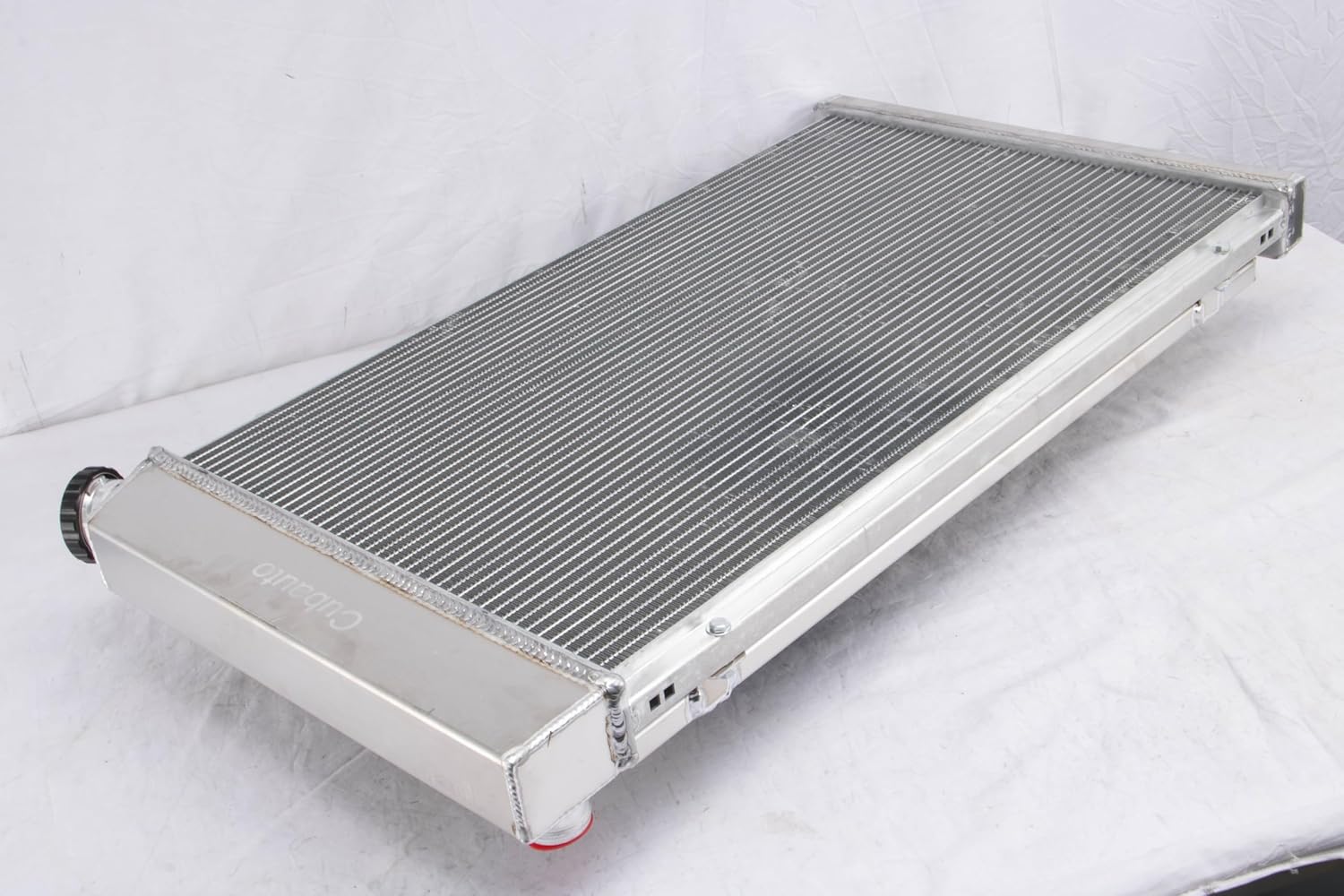

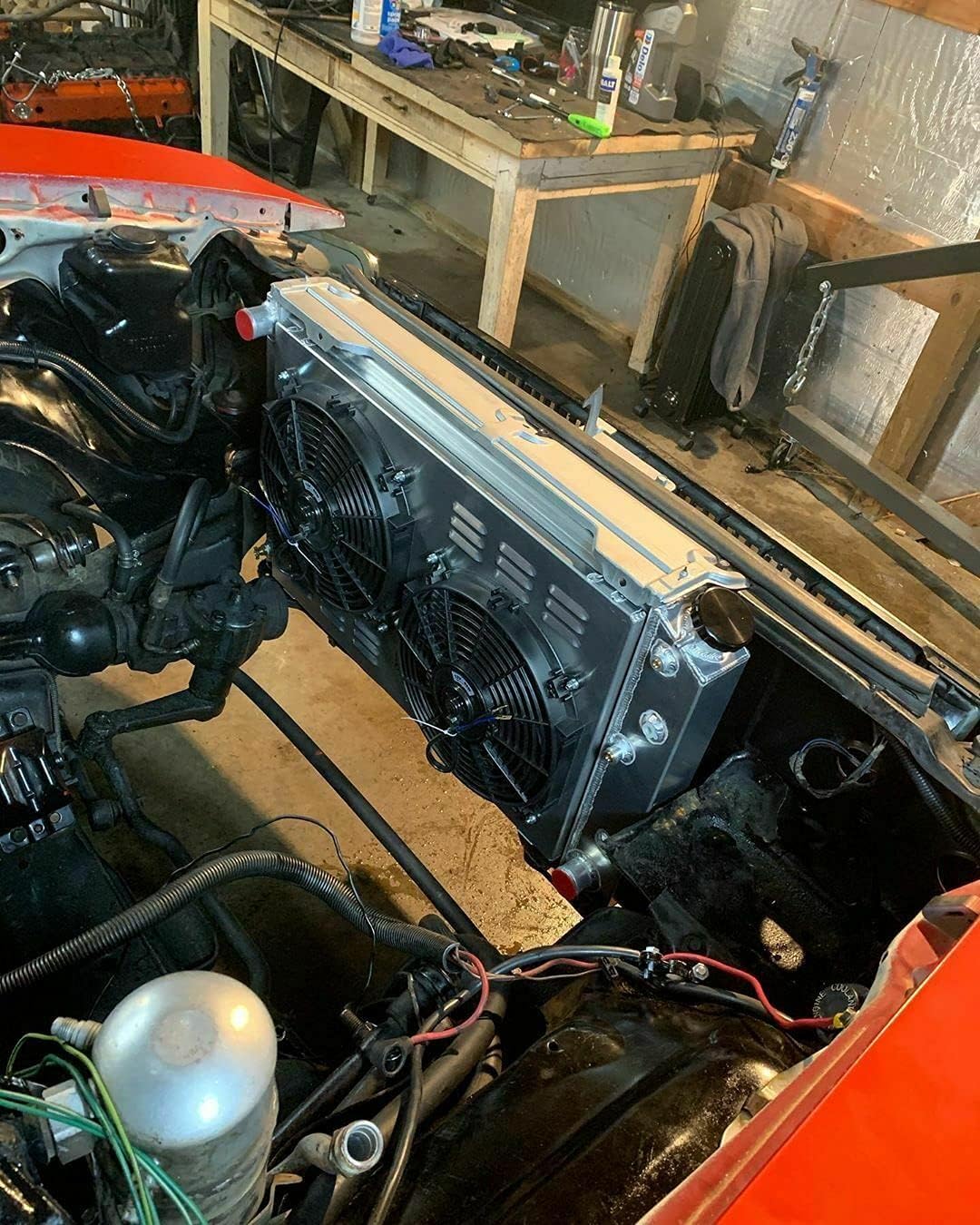

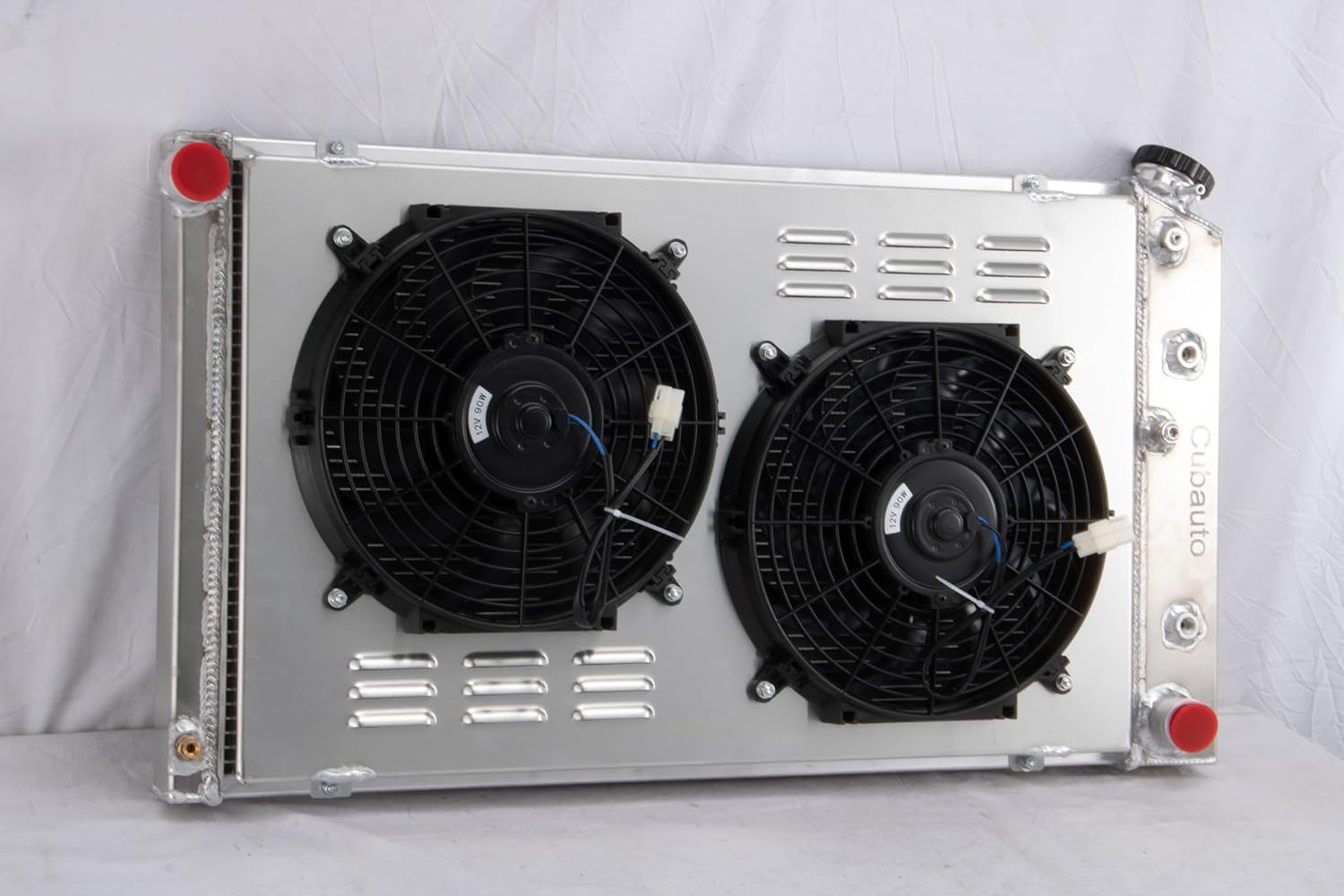

3 Rows Aluminum Radiator+Shroud Fan+Thermoatat For Chevrolet K5 Blazer 1975 1976 1977 1978 1979 1980 Fans for Motors and Engines

Package Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12" Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Size: 3 Rows Core Core Size: 17"H x 28 1/4"W x 2 1/4"T Overall Size: 18 5/8"H x 33"W x 2-1/2"T Hose Locations & Sizes: In Driver- 1-1/2" / Out Passenger- 1-1/2" Trans Cooler:Included- 1/2" 20 STRAIGHT THREAD G1/4 Surface finish ：Aircraft 5057 grade aluminum tank & core Petcock Drain ：OEM style brass petcock drain Radiator Cap ：CNC machined filler neck and cap Transmission Oilcooler: include Mounting Type : saddle FAN: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Vehicle Fitment: For Chevy Impala Blazer GMC Jimmy 1973-1980 For Chevy Monte Carlo 1970-77/Chevy Impala 1971-1979 For Chevy K5 K10 Blazer 75-80/Cutlass Supreme 74-77 For Chevy Caprice 1971-1990/Chevelle/GM 28" 66-80 For Cadillac Fleetwood/Brougham 1965-1974 For Chevy Chevelle 1968-1973/Chevy El Camino 1968-1977 For Oldsmobile Delta 1968-1988/Pontiac 1968-1970 For Cadillac Olds Cars / Buick Skylark 67-72 For Olds Cutlass and Cutlass Supreme 66-77

• Compatible For 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 Chevy Chevelle Impala El Camino Caprice C20
• Core Size: 17"H x 28 1/4"W x 2 1/4"T / Overall Size: 18 5/8"H x 33"W x 2-1/2"T
• Full aviation-aluminum craftsmanship, 100% welded by TIG
• Racing design/improves cooling by 35 -45% temp
• Direct Bolt-On OEM Fitment or Replacement
