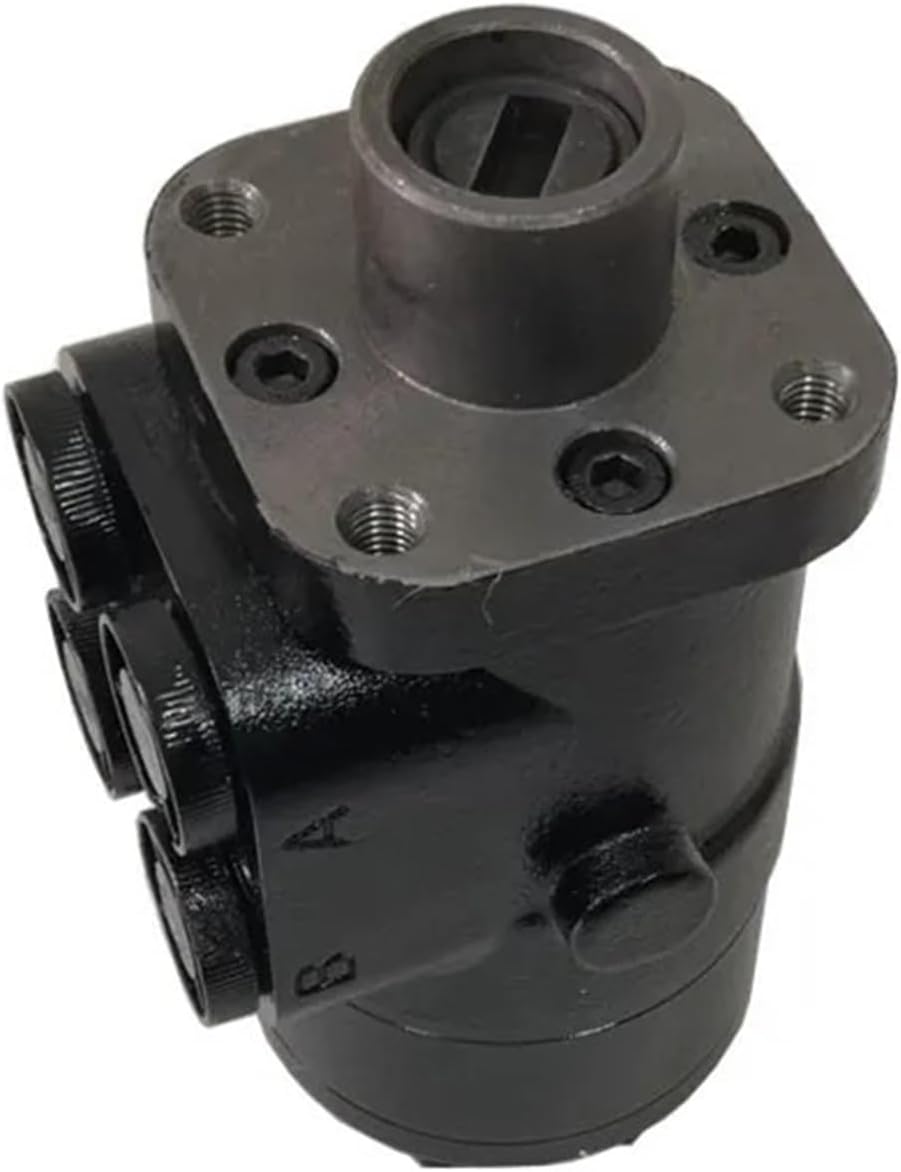

CAARLA Hydraulic Steering Gear Hydraulic Power Steering Pump BZZ 1 for Loader/Forklift(BZZ2-E80)

Introduction:Hydraulic steering control units (BZZ),hydraulic motorBZZ1, BZZ2, BZZ3 Hydraulic steering control units(SCU), design, better performance. Widely applied to low speed and heavy load vehicles E.g. construction machinary, forklift, tractor, harvester and helm control etc.Advantages:The advantages of the hydraulic steering control units:1. Low cost, reliable.2. No load reaction on the steering wheel comfortable.3. Manual operation available when the pump doesnt work.4. Low control torque, continuous operation.5. According to the systems, different function and pressure level valves available.Specification:Type Displacement(mL/r) Flow(L/min) Max.inputpressure (MPa) Max. cont. backpressure (MPa) Length (mm) BZZ (1.2.3)E50 * 50 4 16 2.5 140 BZZ(1.2.3) E63 * 60 5 141 BZZ(1.2.3) E80 * 80 6 142.5 BZZ(1.2.3) E100 * 10 7.5 145 BZZ(1.2.3) E125 * 125 9.5 148 BZZ (1.2.3)E160 * 160 12 153 BZZ(1.2.3) E200 * 200 15 158 BZZ (1.3)E250 * 250 19 164 BZZ (1.3)E280 * 280 21 169 BZZ (1.3)E315 * 315 24 174 BZZ(1.3) E400 * 400 30 184 BZZ (1.3)E500 * 500 38 197 BZZ(1.3) E630 * 630 48 216 BZZ (1.3)E800 * 800 60 236 BZZ (1.3)E1000 * 10000 75 262 ==========Origin : Mainland ChinaType : Hydraulic Power Units, Hydraulic Power UnitsWeight : 6Product : tractor steering orbitrolFunction code : ONDisplacement : 250ml/revRate flow : 19L/minMax.Input Pressure : 16.0MpaBack pressure : 2.5Oil port : G1/2Oil tempreture : -35~80

• 1. Extend service life and ensure reliability
• 2. Efficient steering assistance, less burden on the engine, and reduced fuel consumption
• 3.Which has the characteristics of wear resistance, high temperature resistance and aging resistance
• 4.Provides stable handling and precise control, improving driving reliability
• 5.Installation: Stable performance,streamline the installation process
