Fts SPB206-2-35 Bushing Pulley, SPB Booklet (TB2517 Bushing), Shaft Diameter 1.4 inches (35 mm), Key Dimensions 4.0 x 3.1 inches (10 x 8 cm), Depth 8.4 x Height 8.4 x Width 1.8 inches (21.3 x 4.5 cm)
$63.65
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by lmclinicxpress.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$63.65
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by lmclinicxpress.com
Free 30-day returns Details
Product details
| Management number | 211206058 | Release Date | 2026/04/04 | List Price | $25.46 | Model Number | 211206058 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
TB bushing system No shank or keyway required. Easy to position and remove on shaft. Taper lock construction creates reliable tightening power. Can be used with both regular V-belt (B/BX), thin V-belt (5V/5VX), SP belt (SPB). Compatible with new JIS parallel keys
- Country of manufacture: China
- datum diameter (nominal diameter): 8.1 inches (206 mm), PD dimension:
- outer diameter 8.4 inches (213 mm), OD dimension:

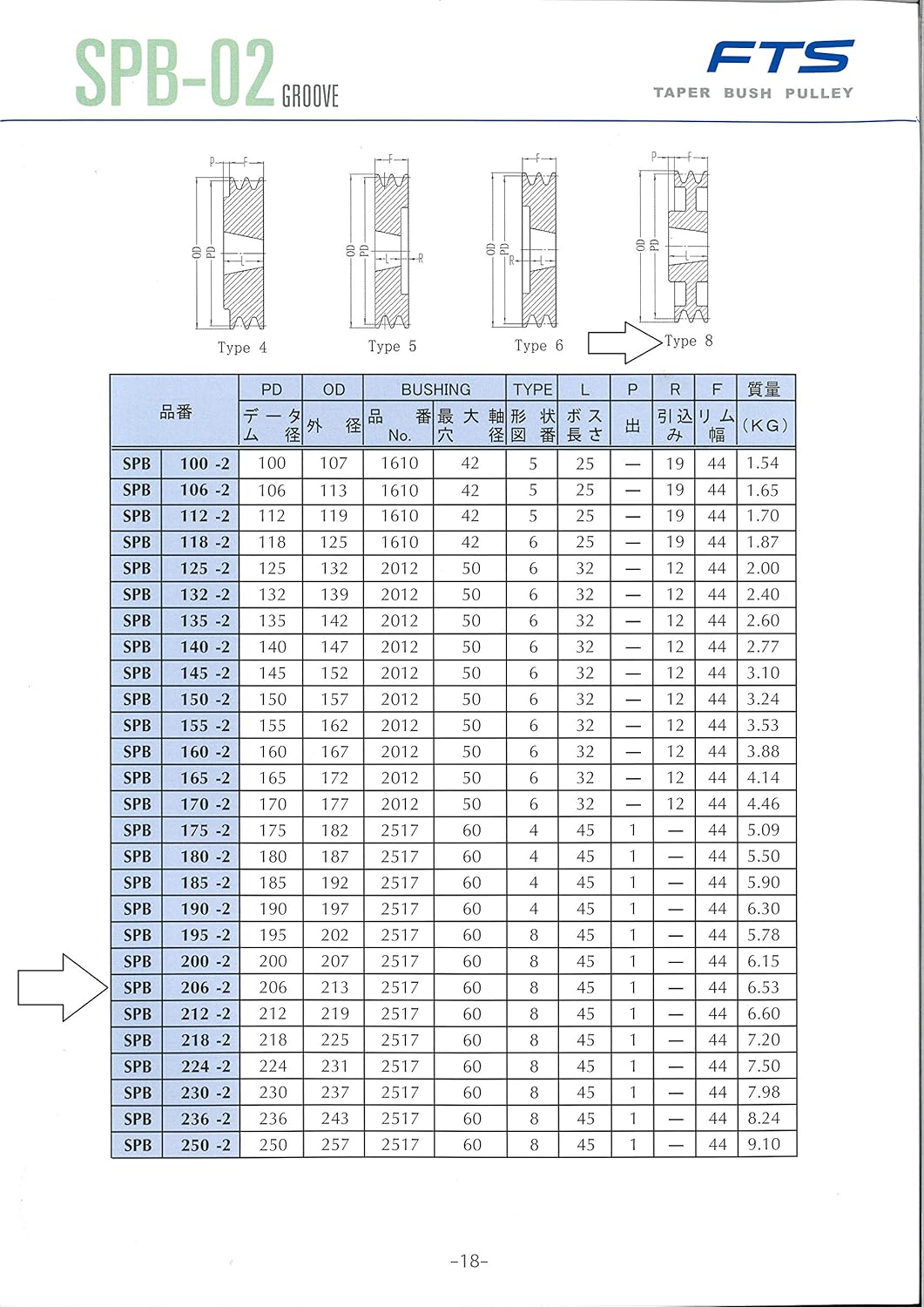

- general use V-belt (B/B). 32023 Includes TB bushing model number: TB2517. Shaft hole diameter 1.4 inches (35 mm). Key nominal dimensions: 0.4 x 0.3 inches (10 x 8 (key width) 0.4 inches (10 x 10 mm). Comes with bushing, so there is no need to drill holes. Material: FC200-250. Shape drawing: Type 8
| Torque | 40 Newton Meters |
|---|---|
| Item Weight | 17.05 pounds |
| Part Number | SPB206-2-35 |
| Manufacturer | エフティーエス(Fts) |
| Number Of Pieces | 1 |
| Item model number | SPB206-2-35 |
| Batteries Required | No |
| Package Dimensions | 11.02 x 11.02 x 1.97 inches |
| Included Components | Hex Socket Screw |
| Item Package Quantity | 1 |
