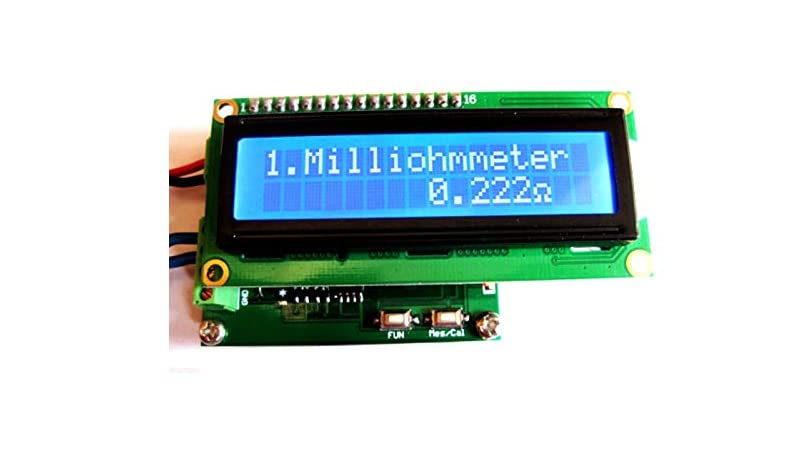

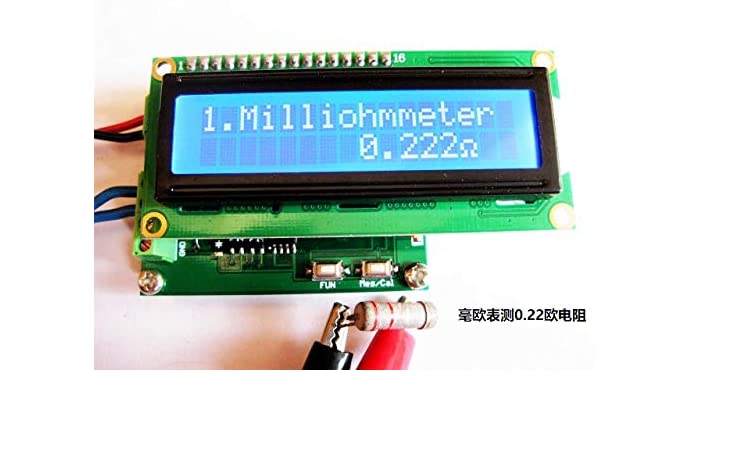

HR390 Milliohm Meter Low Resistance Tester Ohmmeter to Measure Resistance Value
Product details
| Management number | 211160920 | Release Date | 2026/04/04 | List Price | $14.40 | Model Number | 211160920 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Technical Data Sheet: 1 Measuring resistance range 0.001 ~ 120 Ω 2 Resistance measurement resolution 1 mΩ 3 measuring capacitance range 10pf ~ 20000uf 4 capacitance measurement 1pf 5 working voltage 7~12 VDC 6 operating current <100 mA 7 Size 57*45*20 mm Length X Width X Height Interface description and related operations P1 wiring definition: No. Symbol Meaning 1 VDD module power supply positive (7V~12V) 2 GND power supply of the module P3 wiring definition: No. Symbol Meaning 1. R+ connected to the measuring resistor 2. R-connected measuring resistor 3. CAP is connected to the measuring capacitor positive 4. GND is connected to the negative of the measuring capacitor Key Description FUN: Switch the measured capacitance value or resistance. Mes/Cal: Calibration (resistance short circuit measurement line calibration, capacitance open measurement line calibration) Packing: 1pc * HR390 Milliohm meter
- Measuring resistance range 0.001 ~ 120 Ω
- working voltage 7~12 VDC
- operating current <100 mA
- Size 57*45*20 mm Length X Width X Height
| Color | Green |
|---|---|
| Brand Name | YILUBAO |
| Manufacturer | YILUBAO |
| Included Components | see details |
| Warranty Description | see details |
