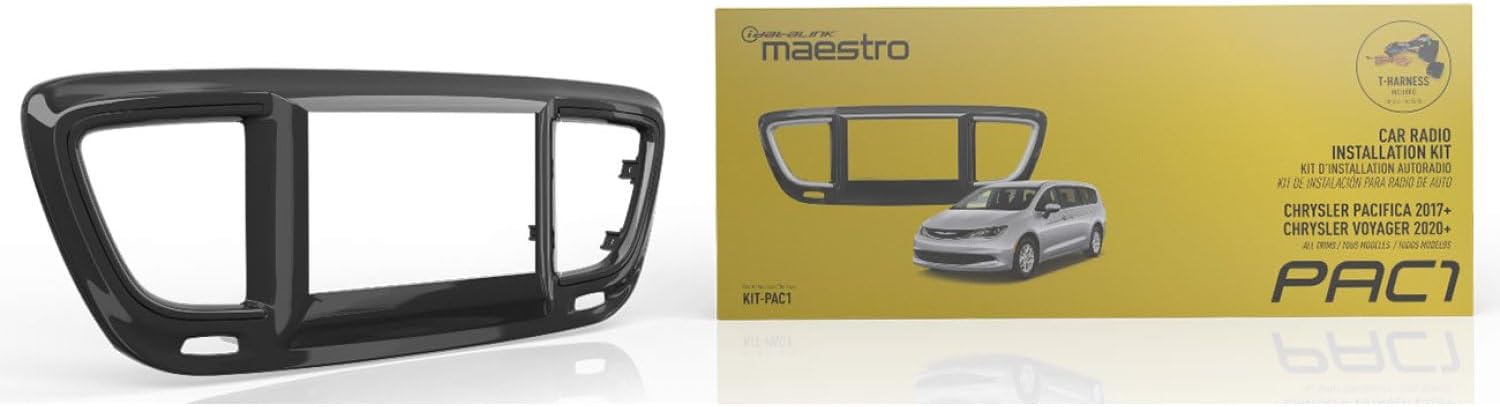

Idatalink Maestro KIT-PAC1 Dash Wiring Kit Radio Replacement - Install & Connect a New Ready car Stereo in Select 2017-22 Chrysler Pacifica & Voyager (ADS-MRR or ADS-MRR2 Module Required)

iDatalink Maestro KIT-PAC1 Dash Wiring Kit Radio Replacement - Install & connect a new iDatalink-ready car stereo in select 2017-22 Chrysler Pacifica & Voyager (ADS-MRR or ADS-MRR2 Module Required) Upgrade your Chrysler's factory stereo. Chrysler's Pacifica and Voyager offer first-rate performance and roomy cabins for passengers and cargo, but their dashboards make it difficult to upgrade the factory radio. The iDatalink KIT-PAC1 (along with the Maestro ADS-MRR module or ADS-MRR2 module, sold separately) gives you everything you need to install an iDatalink-ready double-DIN (4" tall) stereo and wire it up to your Chrysler. The kit includes a media hub adapter that lets you keep your USB and AUX inputs, and you'll also retain your steering wheel audio controls, factory amplifier (if present), backup camera, rear seat entertainment (RSE) system, vehicle settings, and and radio information in the instrument cluster. When used with a NAV receiver, the kit supplies the parking brake, foot brake, reverse, and VSS (Vehicle Speed Sensor) outputs you'll need. And it's simpler to install than you might think; check out the iDatalink installation video at the top of this page. Two replacement air vent trim panels in different colors let you match the original trim, and the gloss black dash panel finish matches your factory dash. This kit is compatible with 2017-up Chrysler Pacifica and 2020-up Chrysler Voyager models with factory 4" or 8.4" screens. Product Highlights: ◾ Allows you to install an an iDatalink-ready double-DIN radio in your Chrysler (also requires the Maestro ADS-MRR or ADS-MRR2 module) ◾ Two sets of air vent trim panels match your vehicle's factory trim ◾ Retains factory steering wheel audio controls ◾ Retains factory amplifier and fader (if equipped) ◾ Retains factory USB port, AUX input, and factory rear seat entertainment (RSE) system ◾ Retains radio information view in factory instrument cluster ◾ Provides outputs (parking brake, foot brake, reverse, and VSS Vehicle Speed Sense [VSS]) for NAV receivers What's in the box: ◾ iDatalink KIT-PAC1 Dash and Wiring Kit owner's manual ◾ Dash-panel ◾ 2 Support brackets ◾ 2 ISO-brackets ◾ 2 Silver trim-pieces (pre-installed) ◾ 2 Black trim-pieces ◾ USB/AUX circuit board ◾ Wiring harness ◾ USB harness ◾ Antenna adapter ◾ 2 Panel-clips ◾ 10 Speed-clips ◾ 6 Machine screws ◾ 2 Course-thread screws ◾ Quick Start Guide Chrysler Pacifica/Voyager Installation Kit: The iDatalink Maestro KIT-PAC1 consists of an OEM integration dash kit and vehicle harness designed specifically for the 2017-up Chrysler Pacifica or 2020-up Chrysler Voyager. The KIT-PAC1 lets you replace the factory radio of your 2017-up Pacifica or 2020-up Voyager with an iDatalink Serial Port compatible head unit using the Maestro RR or RR2 Car Radio Replacement Interface module (sold separately). OEM Grade Fit & Finish Kit: The KIT-PAC1 OEM integration kit features a factory grade fit & finish to match the contour and color of your vehicle's dash. The dash kit will fit select aftermarket Double-DIN (4") aftermarket radios with an iDatalink Serial Port. Retained Features: The following factory features (if applicable) are retained when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit using the Maestro RR or RR2 Car Radio Replacement ◾ ◾ Interface module and KIT-PAC1 installation kit. ◾ Factory amplifier with fader (if equipped) ◾ Steering wheel controls with two functions on each button for standard and expanded radio functions ◾ Backup Camera with parking guidelines and park assist chimes ◾ USB Port & Aux Input ◾ Rear Seat Entertainment (RSE) ◾ Vehicle Settings Advanced Camera Features: When used with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Pioneer, or Sony with a 2nd camera input, you'll gain advanced camera features such as front camera auto control, and side camera control (your vehicle must be factory equipped with front and side cameras). Factory BT Microphone (Optional): You can even retain your vehicle's factory installed Bluetooth microphone using iDatalink's MIC1 interface (sold separately). Extra Features: The follow extra features are retained when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit using the Maestro RR or RR2 Car Radio Replacement Interface module and KIT-PAC1 installation kit. ◾ Selectable Performance Gauges ◾ Tire Pressure Display ◾ Battery Voltage Display ◾ Read/Reset Check Engine Codes ◾ Door Open Status and Warning Navigation Outputs: To make installing an aftermarket navigation receiver easier; the KIT-PAC1 provides Parking Brake, Foot Brake, Reverse Gear, & VSS (Vehicle Speed Sense) output wires. Note: The iDatalink Maestro KIT-PAC1 requires the purchase of the iDatalink Maestro RR or RR2 (sold separately) and the download of a vehicle specific firmware from iDatalink's Weblink Desktop (for Windows and Mac). MFR#: KIT-PAC1

• iDatalink Maestro KIT-PAC1 Dash Wiring Kit Radio Replacement - Install & connect a new iDatalink-ready car stereo in select 2017-22 Chrysler Pacifica & Voyager (ADS-MRR or ADS-MRR2 Module Required)
• Allows you to install an an iDatalink-ready double-DIN radio in your Chrysler (also requires the Maestro ADS-MRR or ADS-MRR2 module)
• Two sets of air vent trim panels match your vehicle's factory trim
• Retains factory steering wheel audio controls. Retains factory amplifier and fader (if equipped)
• Retains factory USB port, AUX input, and factory rear seat entertainment (RSE) system
• Retains radio information view in factory instrument cluster
• Provides outputs (parking brake, foot brake, reverse, and VSS Vehicle Speed Sense [VSS]) for NAV receivers
