kimllier 19455-SR-KW-KW-GR Right Angle Gearbox with 2 Keyed Shafts CW/CW 1:1 40HP for Mechanical Equipment

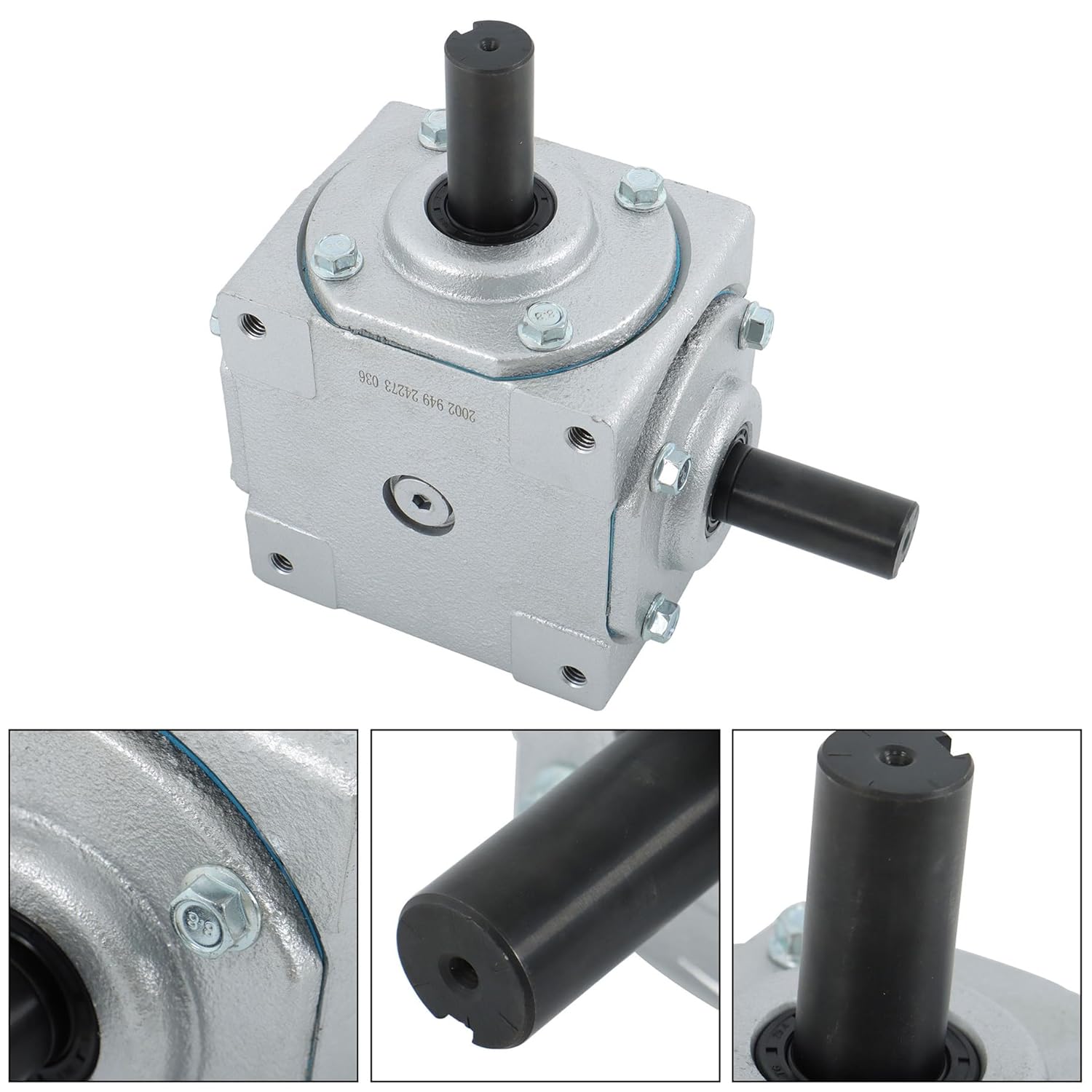

19455-SR-KW-KW-GR Right Angle Gearbox with 2 Keyed Shafts CW/CW 1:1 40HP for Mechanical EquipmentSpecification: Model: Replacement for 19455-SR-KW-PH-GRSize: 5-7/8 inches x 6-1/2 inches x 4-1/8 inchesBolt holes: 4-1/4 inch square layout with 3/8 inch threaded holesOutput shaft: 1 inch diameter x 2-1/4 inch long with 1/4 inch keywayInput shaft: 1 inch diameter x 2-1/4 inch length with 5/16 inch cross-holesFeatures:It turns power from horizontal to vertical (or vice versa) through a 90-degree right-angle design, which is especially suitable for farm machinery, production line equipment, or small machines with compact spaces.The input and output shafts are 1-inch standard diameter with pre-made keyways and cross holes, which can be directly connected to the motor, chain or pulley, and the installation requires no additional machining, saving time and labor!The body is made of thickened cast iron, not easy to rust and vibrate, can withstand 40 horsepower high load work without pressure.

• Replacement for part number: 19455-SR-KW-PH-GR, perfectly compatible in sizeb
• Application: Right angle gearboxes are suitable for industrial equipment, agricultural machinery and other scenarios in a wide range of applications
• Material: The shell is made of cast iron material, not easy to wear and tear for long time use, and can withstand impacts
• Install: Easy to install, sized to fit most equipment, just tighten the screws during installation
• Design: The input and output shafts are at a ninety-degree angle, and the 1:1 speed ratio design makes it easy to change the direction of the power
