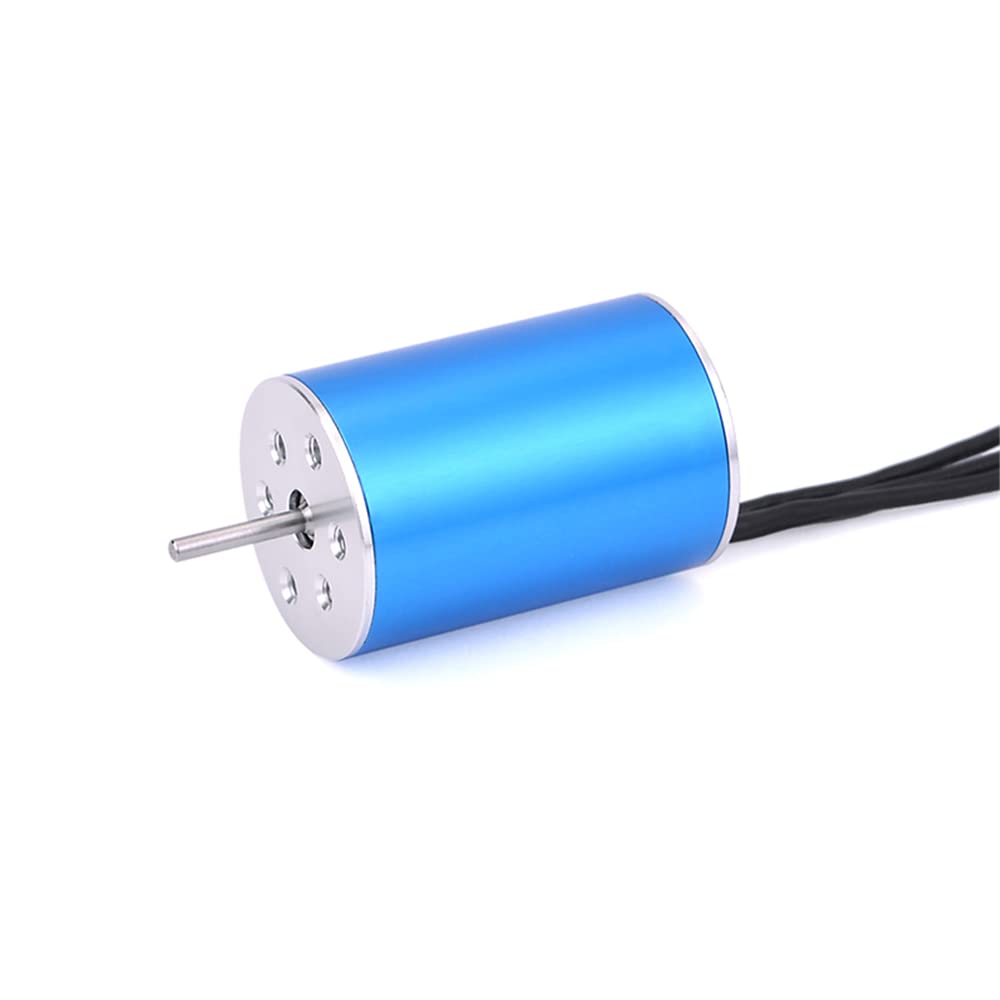

KingVal Replacement 2435 4500KV Sensorless Brushless Motor Shaft 2.0mm with 25A Brushless ESC Compatible with 1/16 1/18 RC Car
Product details
| Management number | 216418464 | Release Date | 2026/04/19 | List Price | $13.87 | Model Number | 216418464 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

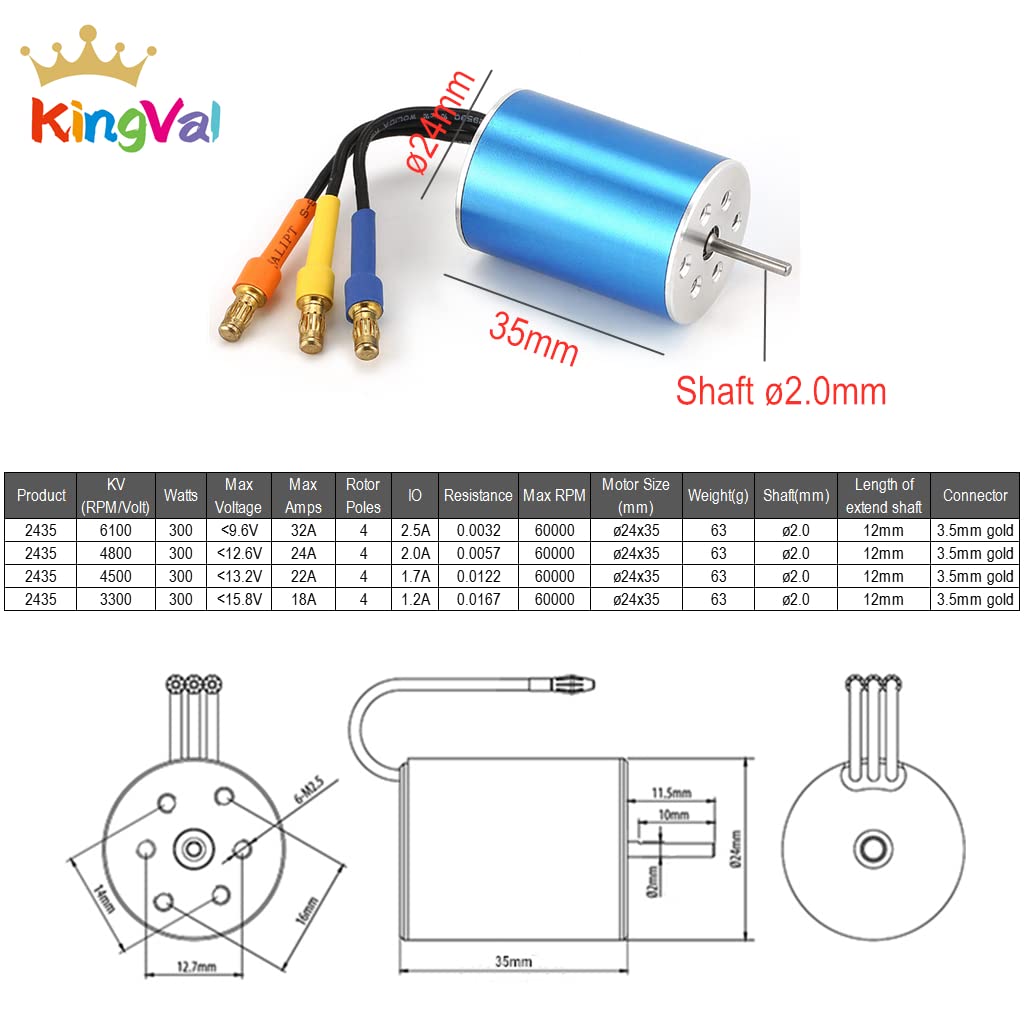

Features:★ 4 Pole 12 Slot Hi-torque Motor Design★ CNC Machined 6061 T6 Billet Aluminum Heatsink Can★ High Purity Copper Windings Maximizes Efficiency★ High RPM ABEC5 Oversized Bearings ★ Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5/M3 screws ★ Precision balanced rotor,smoothness for best reliability and maximum RPM ★ Stator - Super Thin (0.35mm) Laminations★ Removable/Replaceable Rotor ★ Precision Engineered for Maximum Energy ConversionSpecification:Brand: KingValProduct: 2435 Sensorless MotorMotor Size: ø24x35mmKV(RPM/Volt): 4500Watts: 300Max Voltage: <13.2VMax Amps: 22ARotor Poles: 4IO: 1.7AResistance: 0.0122Max RPM: 60000Shaft Diameter: 2.0mmLength of extend shaft: 12mmConnector: 3.5mm goldN.W: 57gESC Specifications:Model: 25ACont.Current/Burst Current: 25A/100AMotor Type: Sensorless Brushless MotorSuitable Car: 1/18, 1/16 carSuitable Brushless Motor: ≥12TResistance: 0.004ohmBattery: 2 cells Lipo,4-6 cells NiMHBEC Output: 5V/2A(analog mode)Dimension: 25*30*14.5mmPackage List:1 x 2435 Sensorless Motor1 x 25A Brushless ESC
- 4 Pole 12 Slot Hi-torque Motor Design
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can
- High Purity Copper Windings Maximizes Efficiency; High RPM ABEC5 Oversized Bearings
- Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5/M3 screws
- Precision balanced rotor,smoothness for best reliability and maximum RPM
| Model | 2mm 2435 4500KV+25A |
|---|---|
| Speed | 60000 RPM |
| Voltage | 13.2 Volts |
| Brand Name | KingVal |
| Horsepower | 300 Watts |
| Item Weight | 0.12 Kilograms |
| Manufacturer | KingVal |
| Material Type | Aluminum |
| Shaft Diameter | 2 Millimeters |
