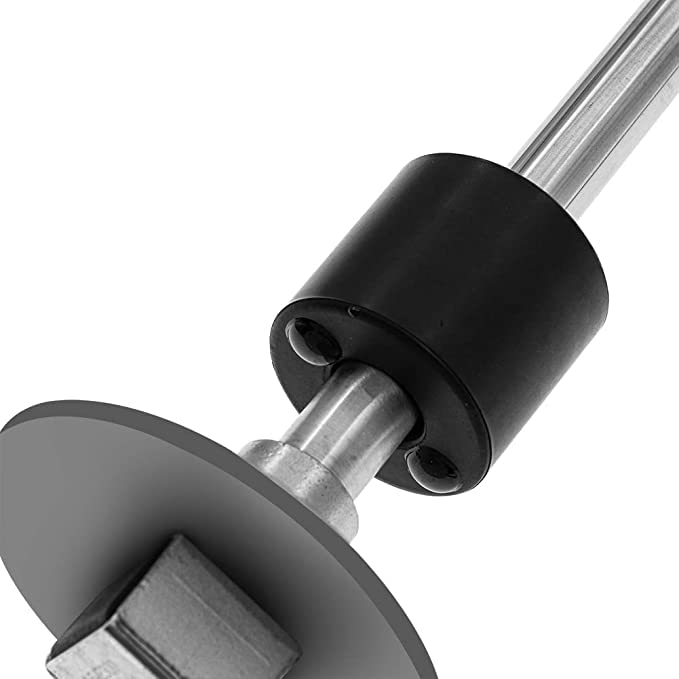

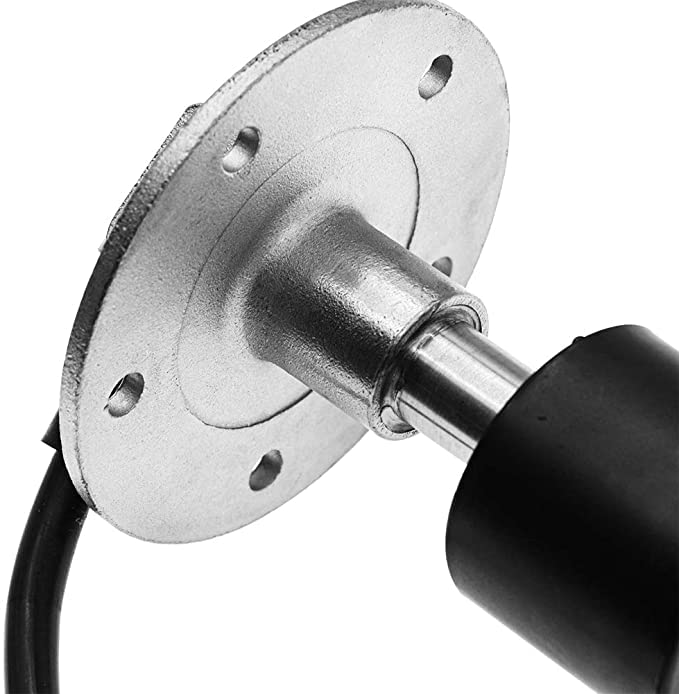

KUS S5 Fuel and Water Tank Level Sensor 0-190ohm (350mm)
Product details
| Management number | 215284971 | Release Date | 2026/04/12 | List Price | $13.20 | Model Number | 215284971 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Fuel and water level sensor Materials: The main body is made of SUS316 or SUS304 stainless steel Length range: 150-1600 mm. Assembly: SAE standard 5 holes Accessories: -5 pieces of M5 screws -2 mm thick NBR gasket Protection rank: IP67 Applying the principle of magnetic field to control the reed on-off switch, featuring long using life, anti-vibration, anti-explosion, etc. Rated Power: 125mW Wire: PVC material Output signal: Resistance control signal, 0-190Ω, 240-33Ω, or customized as required; You can also choose current control signal, 0-20mA, 4-20mA or Voltage control signal, 0.5-4.5VDC, 0-5VDC Precision range: 10-21mm Operating temperature: -40°c -+85°
- Length: 350mm
- Signal: 0-190ohm
- Assembly: SAE standard 5 holes
- Resolution: 21mm
- Material: 316 Stainless Steel
| UPC | 603849021009 |
|---|---|
| Model | S5-E350 |
| Brand Name | KUS |
| Style Name | Modern |
| Output Type | Push-Pull |
| Manufacturer | SPRING AUTO |
| Material Type | 316 Stainless Steel |
| Mounting Type | Flange Mount |
| Measuring Range | 150 - 1600 mm |
| Sensing Distance | 1600 Millimeters |
| Measurement Accuracy | ±21mm |
| Upper Temperature Rating | 85 Degrees Celsius |
