LCR Meter, Digital Multimeter Tweezers, 100KHz SMD Tester, ESR Meter Capacitor Tester with Signal Generator (7 Waveforms), Auto Ranging Electronic Component Meters, Sweep Mode, Measures Z/X/P

SK-BD2 Tweezers BridgeResistance: 1Ω~10MΩCapacitance: 1nF~20mFInductance: 10μH~60HParameters: L, C, R, D, Q, Rs, Z, X, PRanges:Auto rangeResistance rangeCapacitance rangeInductance rangeDiode measurementSignal outputContinuity rangeVoltage measurementSweep frequencyFrequency: 100Hz, 120Hz, 1KHz, 10KHz, 100KHzVoltage: 30VLevel: 0.1V, 0.3V, 0.6VSignal:Sine waveSquare waveTriangle waveStair waveHalf waveFull waveNoise waveDisplay: 1.47 inch TFTRange: AutoTest Rate: 1 time/secondData Hold: YesLanguage Selection: Chinese, EnglishScreen Orientation: Auto, Left, RightVolume Setting: 0% ~100%Backlight Brightness: 10% ~ 100%Auto Power Off: Off, 5 minutes~120 minutesCalibration Setting: 0Ω~10MΩ, OPENFactory Reset: YesFirmware Upgrade: YesLow Battery Warning: YesBattery: Lithium polymer rechargeable battery 3.7V 300mAhMaterial: CNC aluminum alloySingle unit with packaging weight: 168gSingle unit with packaging dimensions: 200*70*50mmPacking Quantity: 50 units/casePacking Weight: 9KGPacking Dimensions: 41×37.5×28CM

• 【Professional 100kHz LCR Meter with Unmatched Precision & Range】- Experience laboratory-grade accuracy in the palm of your hand. This high-precision LCR meter features 5 test frequencies (100Hz to 100kHz), enabling superior component analysis across a wide range: Resistance (1Ω-10MΩ), Capacitance (1nF-20mF), and Inductance (10μH-60H). It's the ultimate tool for demanding R&D and quality control, performing as an inductance meter, capacitor tester, and ESR meter with exceptional reliability.

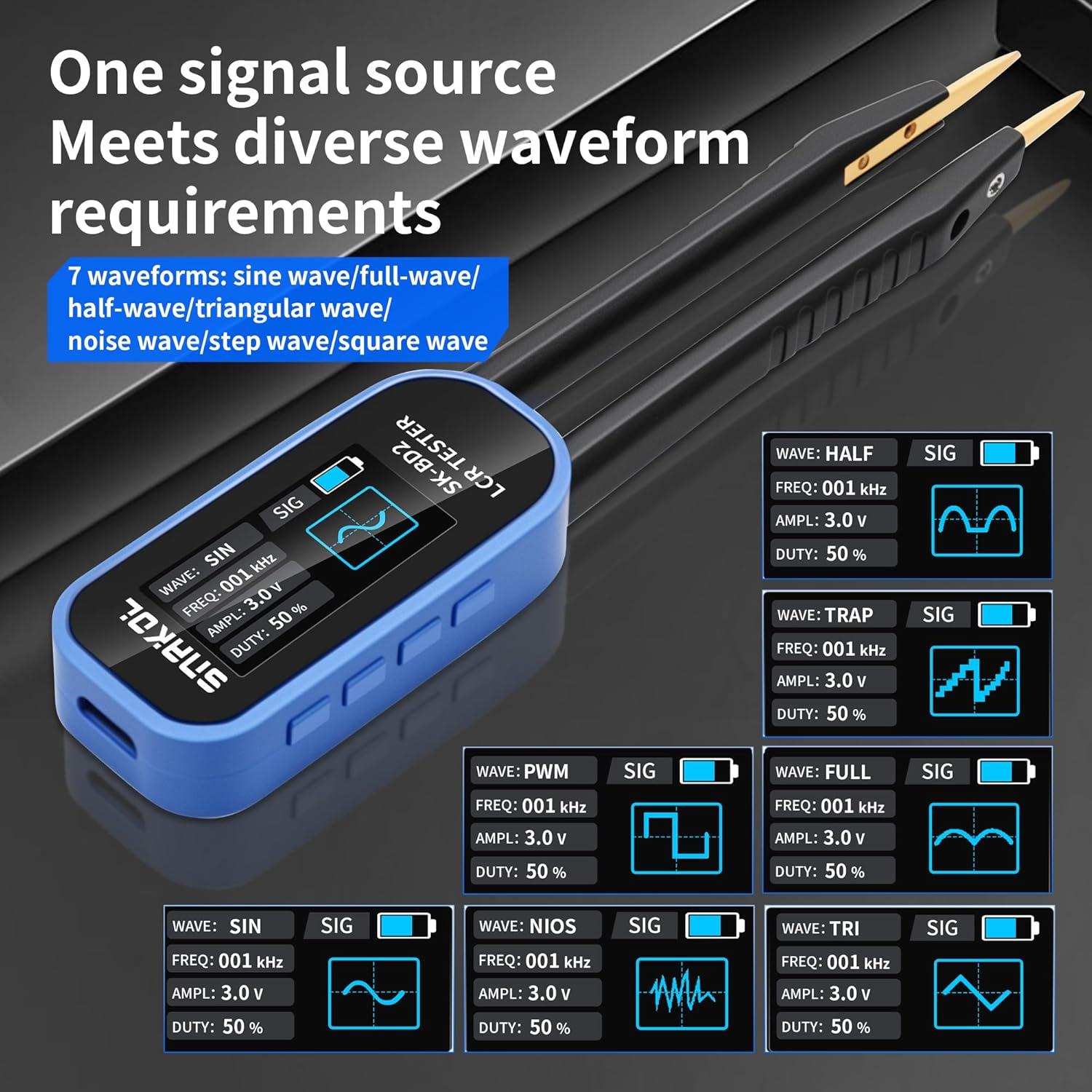

• 【Built-in 7-Waveform Signal Generator & True Voltmeter】- Go beyond testing and become a mobile workstation. Uniquely equipped with a 7-waveform signal generator (Sine, Square, Triangle, etc.) and sweep frequency mode, it's perfect for stimulating circuits and analyzing responses. Combined with a 30V DC voltage measurement capability, this electric meter tester consolidates multiple instruments into one portable device, eliminating the need for extra gear on your bench.
• 【Comprehensive Component Analysis with Advanced Parameters】- This advanced component tester doesn't just measure L, C, and R; it provides a full diagnostic by displaying critical derived parameters like D, Q, Rs (ESR), Z (Impedance), X (Reactance), and even Phase. Identify faulty capacitors with the ESR meter capacitor tester function or characterize complex components with depth unmatched by basic testers.
• 【Engineered for Efficiency: CNC Body, TFT Screen & Data Hold】- Designed for all-day professional use. The durable CNC-machined aluminum alloy housing ensures longevity, while the large 1.47-inch TFT color display offer optimal visibility. Features like Data Hold, Type-C charging, and a lightweight design make tedious SMD work and transistor tester tasks faster and more efficient.
• 【Complete Pro Kit for Advanced Diagnostics & Salvage】- Your all-in-one solution for advanced electronics repair and prototyping. Quickly locate faulty components on dense PCBs, characterize unknown parts for your projects, and safely recover valuable chips from used boards. The kit includes replaceable straight/curved tweezer tips, a charging cable, and a protective case, ensuring you're ready for any challenge right out of the box.
