Little Giant 4E-34NR 115 Volt, 1/12 HP, 810 GPH Small Submersible Oil-Filled Water Transfer Pump with 6-ft. Cord, Blue, 504203
Product details
| Management number | 210655292 | Release Date | 2026/04/02 | List Price | $170.27 | Model Number | 210655292 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

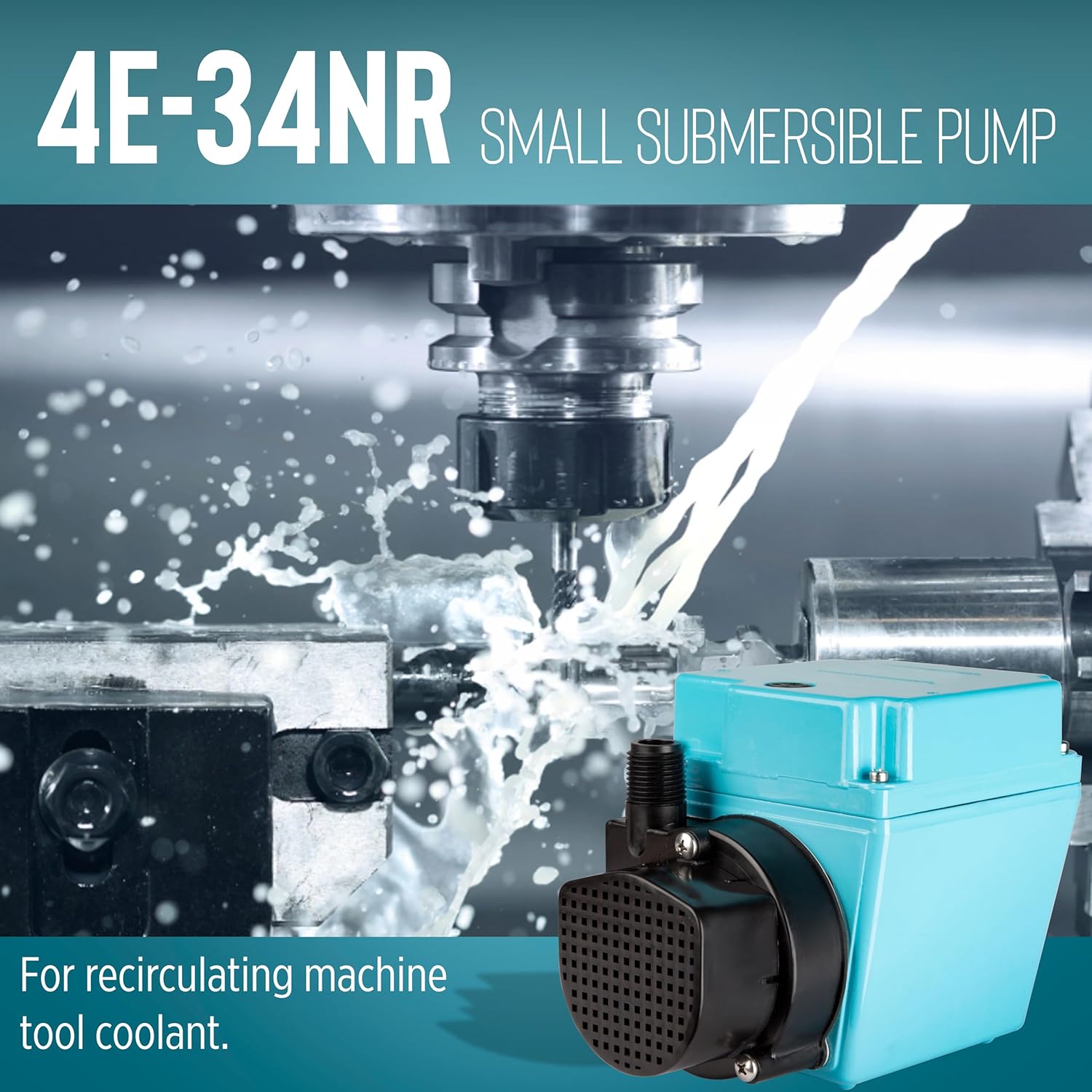

The 4E-34NR 115 Volt, 810 GPH oil-filled submersible pump with epoxy coated cast aluminum housing is suitable for commercial, industrial or home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and other applications where liquid is transferred or recirculated. This pump is equipped with a pre-screen which protects the impeller and motor and comes with a 6-ft. cord.
- APPLICATIONS: for commercial, industrial or home use such as statuary fountains, water displays, air conditioners, machine tool coolants or general water transfer or recirculation
- BUILT TO LAST: Epoxy coated cast aluminum housing and cover, nylon volute and impeller, polypropylene screen, Viton shaft seal, rated for intermittent liquid temperatures up to 120°F
- EQUIPPED WITH: 1/2-inch MNPT discharge, 3/4-inch FNPT intake; pre-screen protects the impeller and motor from damage; 6-ft. power cord with plug
- MOTOR SPECIFICATIONS: 1/12 HP, 115 Volts, 60 Hz., 3.5 running Amps, 210 Watts, thermal overload protected, CSA listed in the USA and Canada
- PUMP SPECIFICATIONS: 810 GPH at 1-ft. lift; 24.5 ft. shutoff, maximum 10.6 PSI, 1/2-inch MNPT discharge, 3/4-inch FNPT intake
| UPC | 010121042032 |
|---|---|
| Color | Blue |
| Voltage | 115 Volts |
| Flow Rate | 13.5 Gallons Per Minute |
| Brand Name | Little Giant |
| Unit Count | 1.0 Count |
| Manufacturer | Franklin Electric Co., Inc. |
| Model Number | 504203 |
| Power Source | Corded Electric |
| Material Type | Aluminum, Nylon, Polypropylene (PP), Viton |
| Product Style | 115 Volt, 6-ft. Cord |
| Item Type Name | 4E-34NR 115 Volt, 1/12 HP, 810 GPH Small Submersible Oil-Filled Water Transfer Pump with 6-ft. Cord |
| Included Components | installation manual, pump with pre-screen and 6-ft. cord |
| Maximum Lifting Height | 24.5 Feet |
| Item Dimensions L x W x H | 9"L x 6.5"W x 6.5"H |
| Manufacturer Warranty Description | 1 year manufacturer |
