MINIX U8K-Ultra 8K UHD Android TV Box Amlogic S928X-K 128GB eMMC ROM 8GB LPDDR4X RAM WiFi6 1000M BT5.2 USB3.0 Support AV1 VP9 H.265 8K 60fps HDR Box with MINIX A3 Pro Wireless Six-Axis Gyroscope

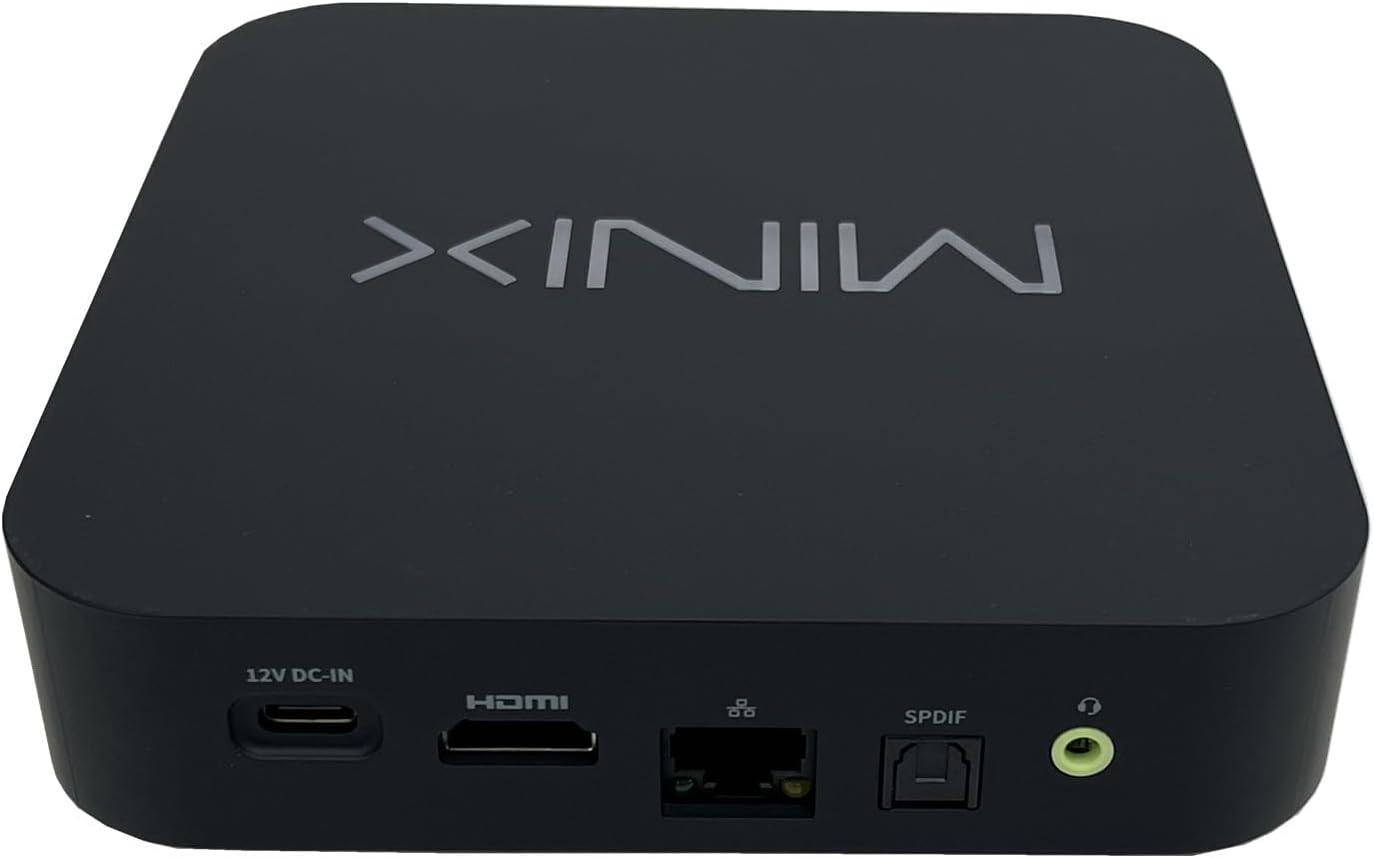

Specifications Processor: big.LITTLE ARM Cortex A76 + Quad-Core Cortex A55 Processor (64-bit) GPU: ARM G57 MC2 NPU: Support INT8 Inference for Deep Learning (Tensor Flow, Caffe, etc.) Memory: 8GB LPDDR4X Internal Storage: 128GB eMMC 5.1 Wireless Connectivity: 802.11ax 2x2 MIMO Dual-Band Wi-Fi 6 (2.4GHz/5GHz), BT 5.2 Operating System: Android AOSP 11, upgradeable via OTA Video Output: HD 2.1 (8K 60Hz, 4K 120Hz), support HDCEC/DV/HDR10+/HDR10/HLG Audio Output: HD 2.1, Optical S/PDIF, 3.5mm audio jack AI Picture Processing: AI Picture Quality Enhancer (AI-PQ), AI Resolution Upscaler (AI-SR) Peripheral Interface: RJ-45 Gigabit Ethernet, Micro SD card reader, USB 3.0 port, USB 2.0 port, 3.5mm audio jack, IR receiver Rated Power Input: DC12V/2.5A (30W USB-C PD adapter included) Dimension: Length: 135.6mm/Width: 135.6mm/ Thichness: 34.9mm Weight: 253g Overview IR Receiver - Compatible with A3 PRO remote and Logitech Harmony. Power LED - The LED glows BLUE when U8K-ULTRA is turned on, RED when suspended. Power Button - To power on the U8K-ULTRA, press the power button once, the power LED’s color will switched from red to blue. To power off the U8K-ULTRA, press and hold the power button until the display shows the power menu options, select OK to confirm your choice. The device can also be turned off using the bundled remote controller. USB 3.0 / OTG Port - The USB 3.0 port is for connecting to an external high-speed USB device, such as USB flash drive and SSD. This port also serves as an OTG port, the OTG port function can be enabled inside of the settings manual. USB 2.0 Port - The USB 2.0 port is for connecting to other USB peripherals such as USB camera, wireless keyboard and mouse set, etc.Micro-SD Card Reader - Increase the storage capacity or read files directly from a micro-SD card slot, supports up to 1TB capacity. 3.5mm Audio Jack - Connect external audio output device. USB-C Power-in Jack - Connect to the included USB-C PD power adapter. HD Port - Connect the U8K-ULTRA via HD to a TV or monitor using the included HD cable. Gigabit Ethernet Port - Connect an Ethernet cable for wired Internet access up to 1000Mbps. S/PDIF Out Port - Connect to an external sound processing unit, such as a sound bar or amplifier. 3.5mm Audio Jack - Connect to an external audio device, such as speakers or earphones. Package Contents 1 x MINIX U8K-ULTRA 1 x BLE AIR MOUSE (MINIX A3 PRO) 1 x PD30W Power 1 x 8K HD Cable USB-A to USB-A 1 x OTG Cable 1 x User Manual

• MINIX U8K-ULTRA 8/128GB adopts Amlogic S928X-K with big.LITTLE ARM Cortex A76 + Quad-Core Cortex A55 Processor (64-bit) CPU and ARM G57 MC2 GPU. 8GB LPDDR4X + 128GB eMMC 5.1, 8K Resolution on board, Android AOSP 11 OS, upgradeable via OTA.
• MINIX U8K-ULTRA is the next generation of AI media hub powered by Amlogic S928X-K processor. With the dedicated hardware video decoder, U8K-ULTRA is designed to decode multiple video formats, including but not limited to: AV1, VP9, H.265-10, AVS3 and AVS2.
• The 8th Generation Advanced Amlogic TruLife Image Engine supports Dolby Vision, HDR10+, HDR, HLG and HDR Vivid processing, independent HDR re-mapping of video and graphic layer, motion compensated noise reduction and motion adaptive deinterlacer.
• The dedicated hardware NPU allows the implementation of Neural Network, which enables AI-based picture quality enhancer (AI-PQ) and AI-based resolution upscaling (AI-SR) function. AI-PQ offers real-time scene detection based on picture contents, picture time and space characteristics; whereas AI-SR offers real-time picture detail upscaling of 2X (1080 content), 3X (720 content) and 4X (480 content), providing a much better upscaling picture quality than traditional non-AI based media players.
• Package Contents: 1 x MINIX U8K-ULTRA,1 x BLE AIR MOUSE (MINIX A3 PRO),1 x PD30W Power, 1 x 8K HD Cable USB-A to USB-A,1 x OTG Cable,1 x User Manual
