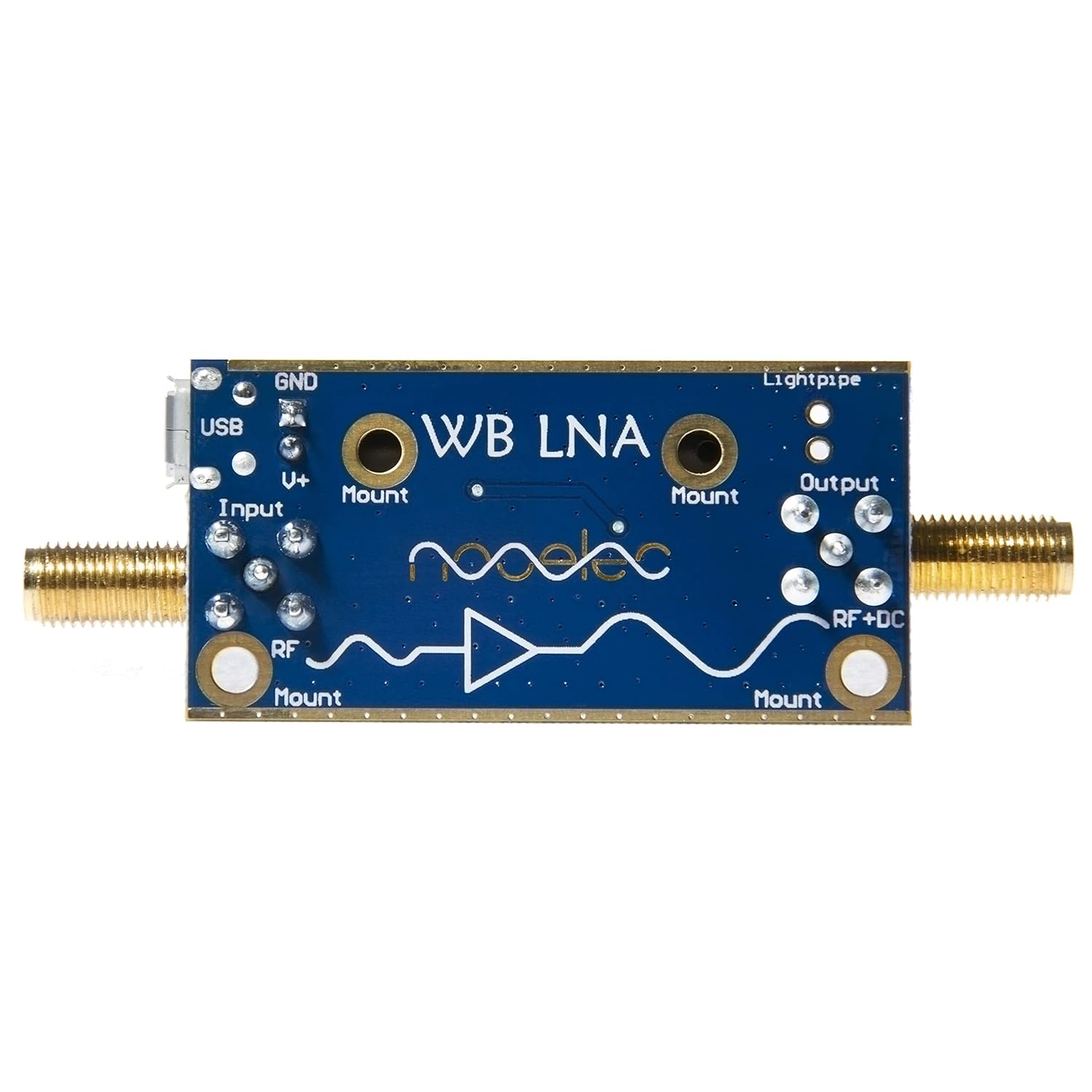

Nooelec Lana Barebones - Ultra Low-Noise Amplifier (LNA) Module for RF & Software Defined Radio (SDR). Wideband and Linear 20MHz-4000MHz Frequency Capability with Bias Tee & USB Power Options
Product details
| Management number | 215164313 | Release Date | 2026/04/12 | List Price | $12.00 | Model Number | 215164313 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
FOR FULL SPECIFICATIONS AND DETAILS, PLEASE REVIEW THE PRODUCT PAGE AT NOOELEC.COM LaNA is a very high performance, wideband LNA module designed for general purpose SDR applications. Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 3V-5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the microUSB port, or DC barrel connector via the included DC to microUSB adapter. The recommended external power input is 3.3V-5.5V DC. Though there is protection circuitry on LaNA for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended for long-term usage.Each LaNA module has an internal EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected.
- A wideband (20MHz - 4GHz), high-performance, general purpose LNA module
- Higher gain, lower noise figure, lower power consumption and better linearity than modules based on SPF5189Z and similar LNA MMICs
- Can be powered through bias tee (3.3V-5V), USB, or DC power
- Made in North America. A retail version with aluminum enclosure is also available, see Amazon product ID B07XNLJ9X2
| UPC | 616469146489 |
|---|---|
| Model | 100802 |
| Voltage | 5 Volts |
| Brand Name | NooElec |
| Item Weight | 14 Grams |
| Manufacturer | Nooelec Inc. |
| Material Type | Aluminum |
| Mounting Type | Surface Mount |
| Item Dimensions | 2.76 x 0.79 x 0.39 inches |
| Package Type Name | Small Box |
| Number of Channels | 1 |
| Maximum Supply Voltage | 5 Volts (DC) |
| Minimum Supply Voltage | 5 Volts |
