OMAX 40X-2500X Super Speed 18MP USB3 Trinocular Phase Contrast LED Microscope with Turret Phase Disk

The 40X-2500X trinocular compound LED microscope provides phase contrast & brightfield microscope system and a super speed 18MP USB 3.0 digital imaging system. The phase contrast microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. It comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm, a complete set of phase contrast kit and 18MP USB 3.0 camera. It offers six levels of brightfield magnification from 40X to 2500X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four phase contrast objectives: PH10X, PH20X, PH40X (S), PH100X (S, Oil). It also offers magnification power: 100X-200X-250X-400X-500X-1000X-2500X. The 4912x3684 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software is compatible with Windows, Mac OS X and Linux operating systems (see version information below). The Windows software can also be used to make measurements. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.

• Total magnification for bright field: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing head: 30 degrees inclined 360 degrees rotatable trinocular Siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
• Total magnification for bright field: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing head: 30 degrees inclined 360 degrees rotatable trinocular Siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
• Total magnification for bright field: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing head: 30 degrees inclined 360 degrees rotatable trinocular Siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
• Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 3inch x 1-9/16inch (78mm x 40mm), dimension 5-1/2inch x 4-1/4inch (140mm x 110mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment

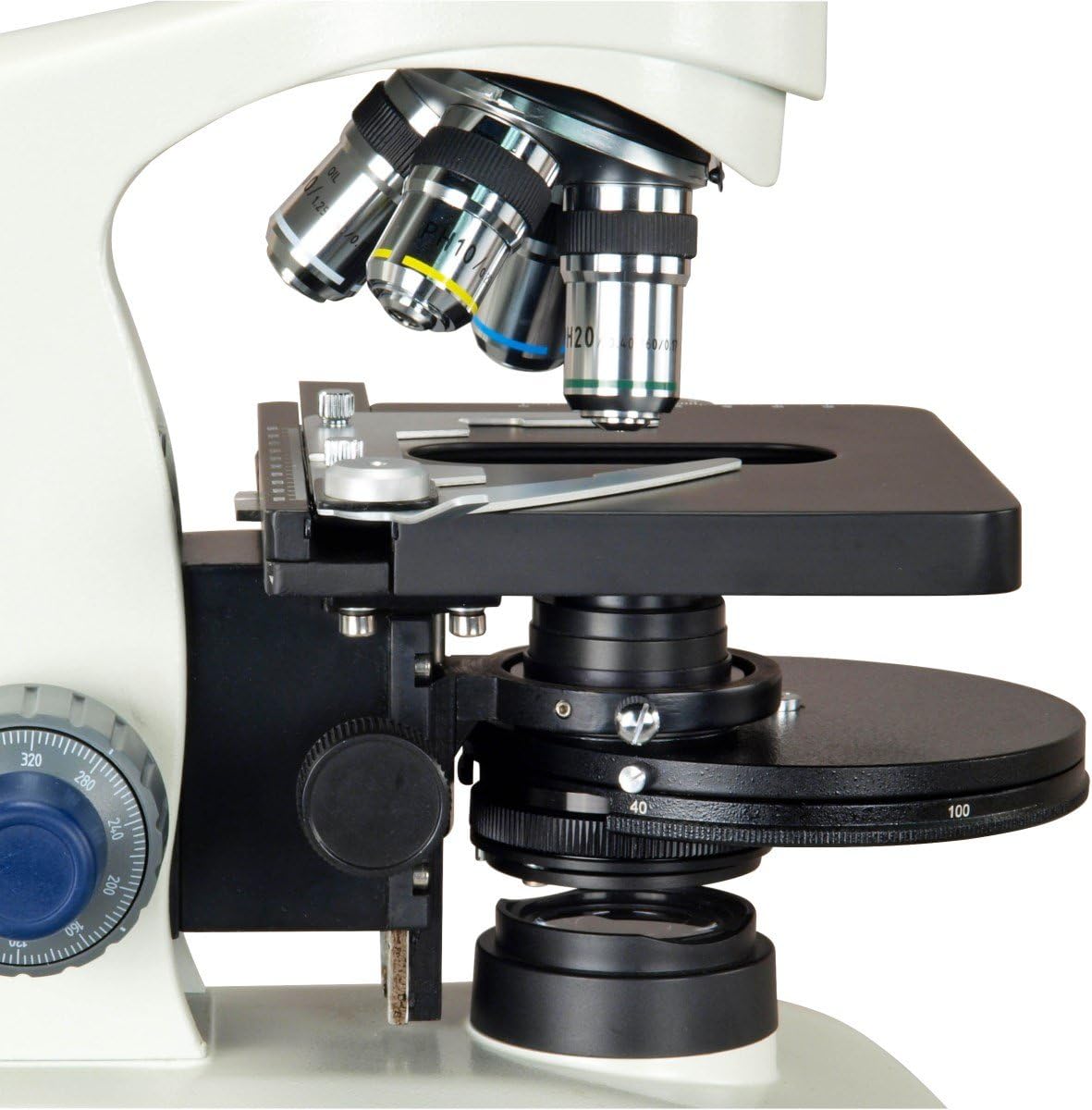

• Phase contrast kit: - Substage phase contrast condenser disk with five switchable positions - One bright field NA1.25 with iris diaphragm Abbe condenser - Four phase contrast condensers: 10X, 20X, 40X, 100X - Each phase contrast condenser can be centered individually - Four PH objectives: 10X, 20X, 40X (S), 100X (S, Oil) - 37mm mounting size in diameter - Centering telescope: 23.2mm; Solid metal base and stand; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
• Digital camera: - true color 4912x3684 pixels (18M pixels) - Super speed USB 3.0 connection - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 5.6fps at 4912x3684, 18.1fps at 2456x1842, 32.2fps at 1228x922 - Software compatible with Windows, Mac OS X and Linux operating systems - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB3 cable included
• 5-year warranty against manufacturing defects
