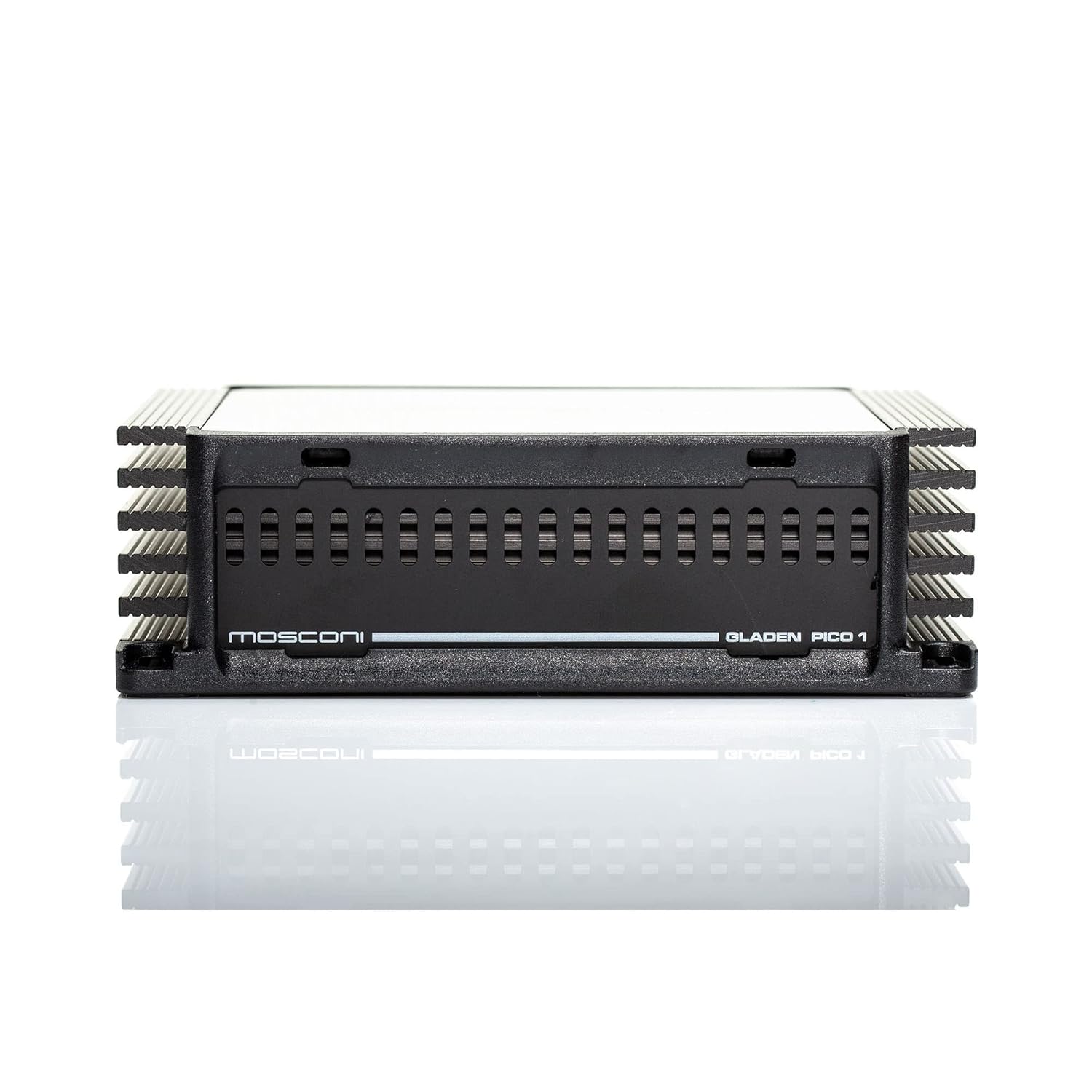

PICO 1, Mono Class D Amplifier: 1 X 500w @ 4 Ohm; 1 X 750w @ 2 Ohm
Product details
| Management number | 208592338 | Release Date | 2026/03/22 | List Price | $360.00 | Model Number | 208592338 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Mono Class D Amplifier: 1 X 500w @ 4 Ohm; 1 X 750w @ 2 Ohm Features: Full-range mono amplifier 750 Wrms Compact and highly efficient. Ideal complement for PICO series amplifiers, or stand-alone as a universal (subwoofer) amplifier. Mosconi high/low level inputs with switchable load resistors and ground coupling/decoupling Specifications: DC-DC converter typology: Unregulated Conversion frequency: 45 KHz (± 6 %) Absolute maximum operation supply voltage range: 10 V ÷ 16 V Recommended operation supply voltage range: 10 V ÷ 14.4 V Power-on/Power-off Voltage Threshold: 9 V / 6 V Mute delay time: 3 secs Secondary voltages (Rail / Service): ±40.8 V / ±14.4 V Max output offset voltage (each channel): ±100 mV Standby current: <0.1 mA (typical) Idle current @ 12V6 (no signal): 0.62 A Thermal protection consumption: <1 mA Battery ground vs secondary ground decoupling: 0 Ohm Body ground vs battery ground decoupling: 0 Ohm (2.2 KOhm @ 100MHz) Bandwidth (-3dB ÷ 10 Watt): 13 Hz ÷ 20 KHz
- Input Range: 0.3 V ÷ 20 V (LL/HL)
- Input Topology: High level with switchable dummyload
- Crossover: OFF – LP 45 – 310 Hz
- Control: Connector for RTC (RTC-2)
- Size: 150 x 115 x 46mm
| Manufacturer | Mosconi Gladen |
|---|---|
| Item model number | Pico1 |
| Package Dimensions | 12 x 10 x 4 inches; 3 Pounds |
