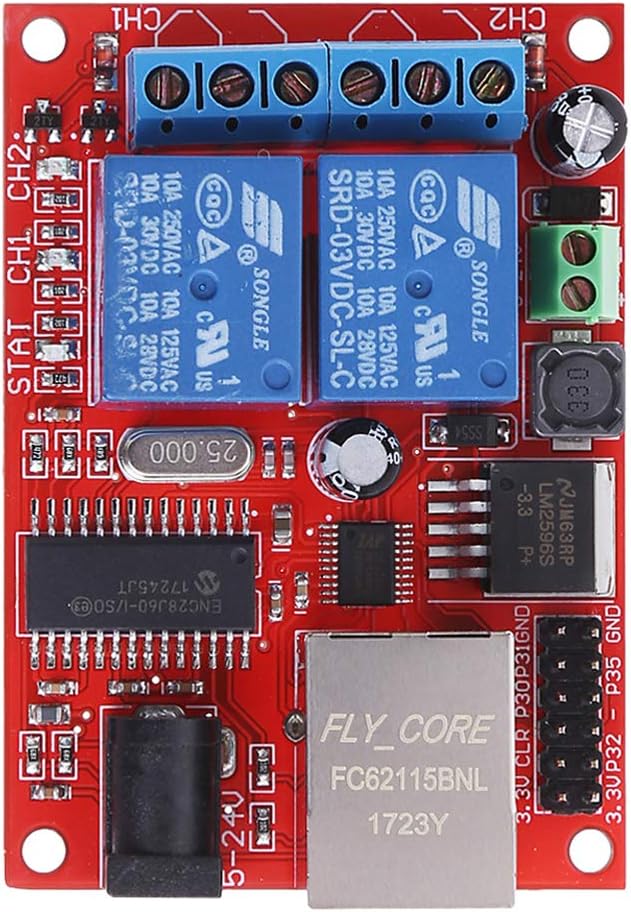

Pinhaijing LAN Ethernet 2 Way Relay Board Delay Switch TCP/UDP Controller Module Web Server

LAN Ethernet 2 Way Board Delay Switch TCP/UDP Controller Module WEB ServerDescriptions:Micro-channel remote control 2-way remote cloud Ethernet network switch delay TCP/UDP module controller can be expanded to 8 Control via Ethernet and internet pull 2 , the release And can be extended by a pin external module to eight outputsModule supports TCP, UDP, cloud remote control three kinds of operationEasy to understand instructions, instruction can 1--65535 seconds delayModule is equipped with VB, for Delphi PC program and source code to help you easily computerized remote controlTCP and cloud remotely can check the status of all relaysAlso after each command processing is complete, the module will return to the latest state of all relaysUDP mode no status query or other returnsCode is extremely simple, easy to be embedded into a variety of applicationsFull support for secondary development, open TCP, UDP control protocol, cloud secondary development package provides remote SOAP Web Service API interface and RESTful Web Service API interfaceModule Features:STC microcontroller for industrial chip Onboard 2-way high-quality , with absorption diode circuit With 1-channel power indicator, each has status indicator lights up and The module can be extended up to 8 outputs, Note: The module should be active highYou can configure the module through the network parameters, such as the module IP address, default for gateway, etcHolding status before power down (configurable) Through internet control, remote cloud by local password for protection, safe and reliable Supports 5V or 9-24V input voltage 1.6mm thick PCB by the military grade FR-4 sheet material, PCB size 6.8x4.8cm, set aside the mounting holes Specification: Brand new PCB dimensions: approx. 6.8x4.8x1.5cm/2.68x1.89x0.59"P

• ❥ Through internet control, remote cloud by local password protection, safe and reliable
• ❥ STC microcontroller for industrial master chip

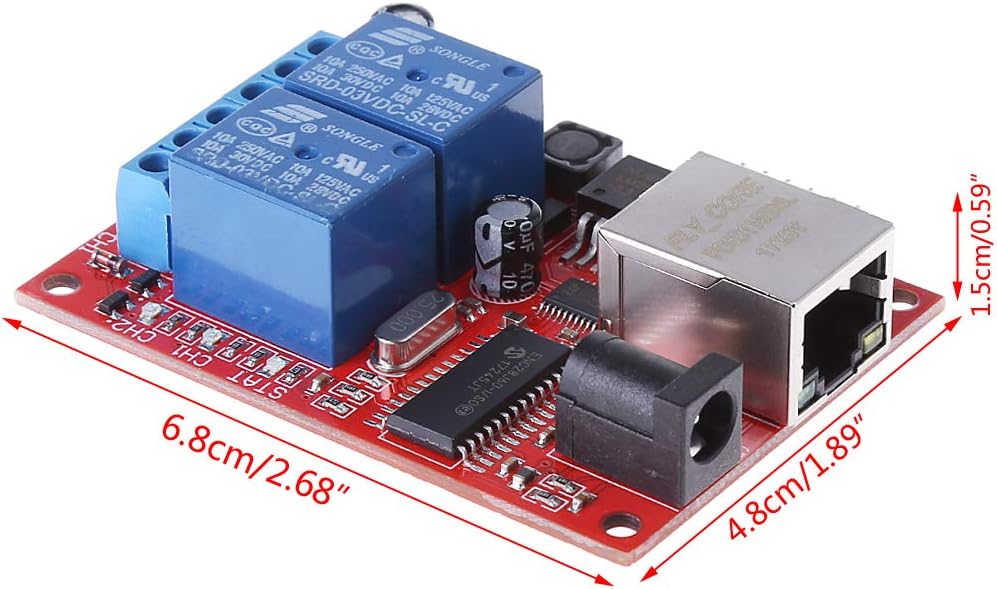

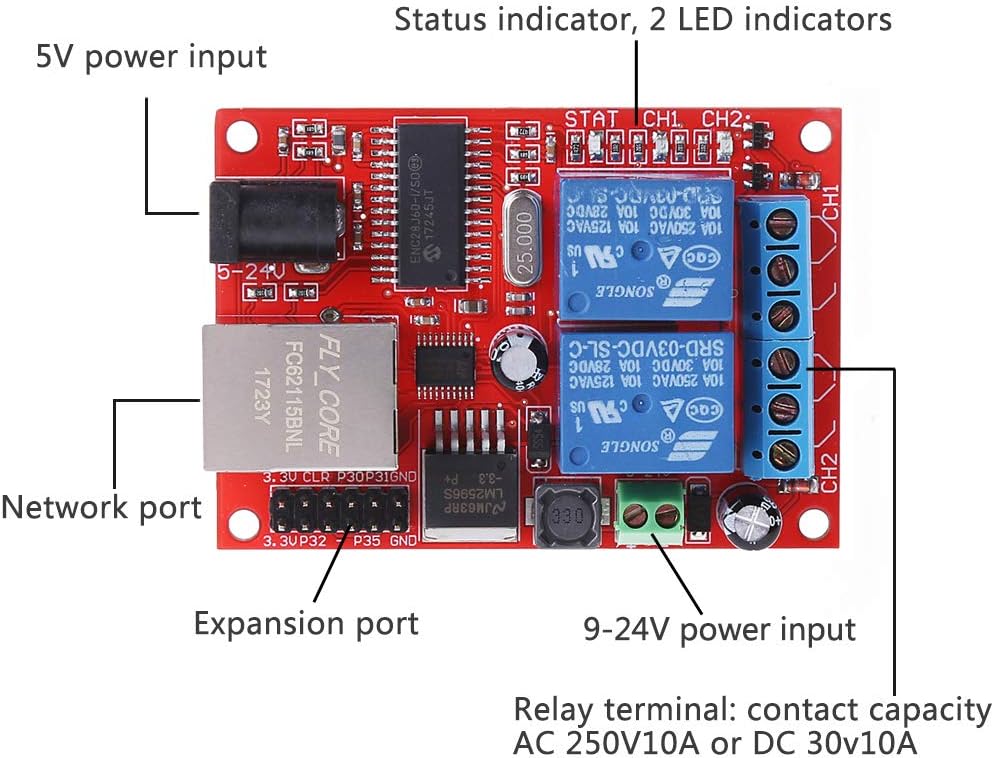

• ❥ Supports 5V or 9-24V input voltage 1.6mm thick PCB by the military grade FR-4 sheet material, PCB size 6.8x4.8cm, set aside the mounting holes
• ❥ With 1-channel power indicator, each relay has status indicator lights up and relay
• ❥ Package include: 1 Pc x Ethernet module
