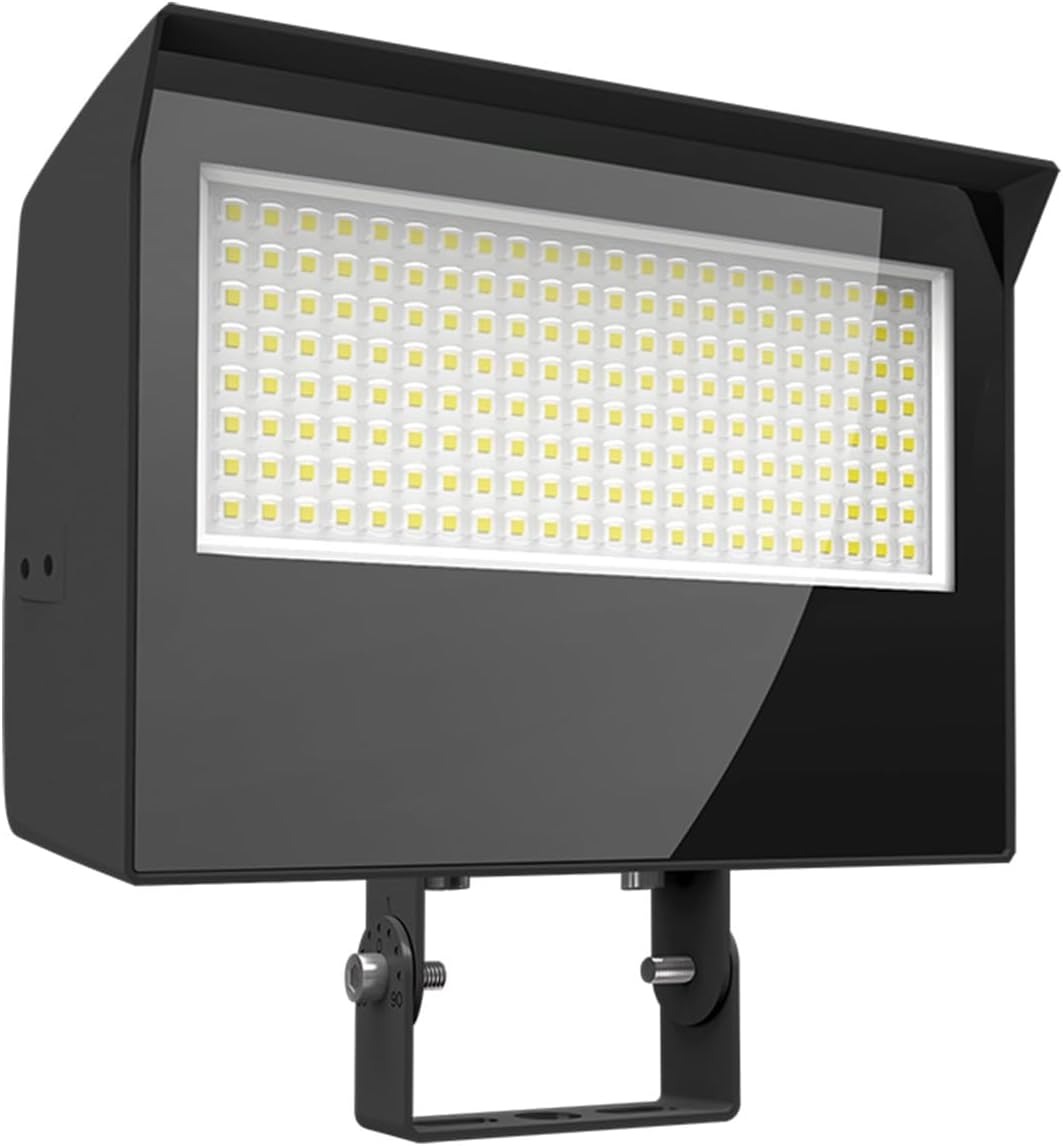

RAB Lighting RAB X22 4-Way Dusk to Dawn LED Flood Light, Selectable 3000K/4000K/5000K, Adjustable 50W/60W/70W/80W, 55/75/90 Beam, 0-10V Dim, 120-277 Volt, Knuckle & Yoke
Product details
| Management number | 210195883 | Release Date | 2026/04/02 | List Price | $80.00 | Model Number | 210195883 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The X22 series not only gives you the flexibility of controlling beam angle, wattage, CCT, and photocell—it also comes with two mounting options right out of the box for a mind-blowing 144 SKUs in ONE SINGLE FLOODLIGHT! Models of the X22 are available in both white and bronze with an adjustable distribution that makes them the optimal floodlight for a large variety of general-purpose applications. All models also come standard with 0-10V dimming.
- Field Adjustable Light Output: 80W/70W/60W/50W.
- Color temperature selectable by 5000K, 4000K and 3000K.
- 120-277V selectable photocell that can be turned on and off.
- Adjustable beam angles: 55°, 75° and 90°.
- Aluminum housing with tempered glass lens.
- Robust knuckle mount with 180° adjustable swivel arm.
- Tilt angle in 10° increments. Yoke included.
| UPC | 192552032766 |
|---|---|
| Color | Bronze |
| Voltage | 277 Volts (AC) |
| Wattage | 80 watts |
| Bulb Base | E26 |
| Room Type | Outdoor |
| Brand Name | RAB Lighting |
| Brightness | 12772 Lumen |
| Efficiency | 159.65 lm/W |
| Model Name | X22-80 |
| Style Name | Modern |
| Unit Count | 1.0 Count |
| Light Color | selectable white |
| Shade Color | Bronze |
| Switch Type | 0-10V Dimmer |
| Finish Types | Bronze |
| Fixture Type | Non Removable |
| Light Source | LED |
| Manufacturer | RAB Lighting |
| Model Number | X22-80 |
| Power Source | Corded Electric |
| Material Type | Bronze |
| Mounting Type | Wall Mount |
| Warranty Type | Limited |
| Control Method | App |
| Item Type Name | Fixture |
| Shade Material | Glass |
| Lighting Method | LED |
| Number of Items | 1 |
| Installation Type | Surface Mount |
| Required Assembly | No |
| Light Fixture Form | Floodlight |
| Included Components | Fixture |
| Indoor Outdoor Usage | Outdoor |
| Water Resistance Level | Not Water Resistant |
| Number of Light Sources | 1 |
| Item Dimensions L x W x H | 10"L x 4.13"W x 7.38"H |
| Specific Uses For Product | Outdoor |
| Manufacturer Warranty Description | 5 year manufacturer. |
| Other Special Features of the Product | Adjustable Color Temperature, Adjustable Beam Angles, Adjustable Light Output, Dimmable |
