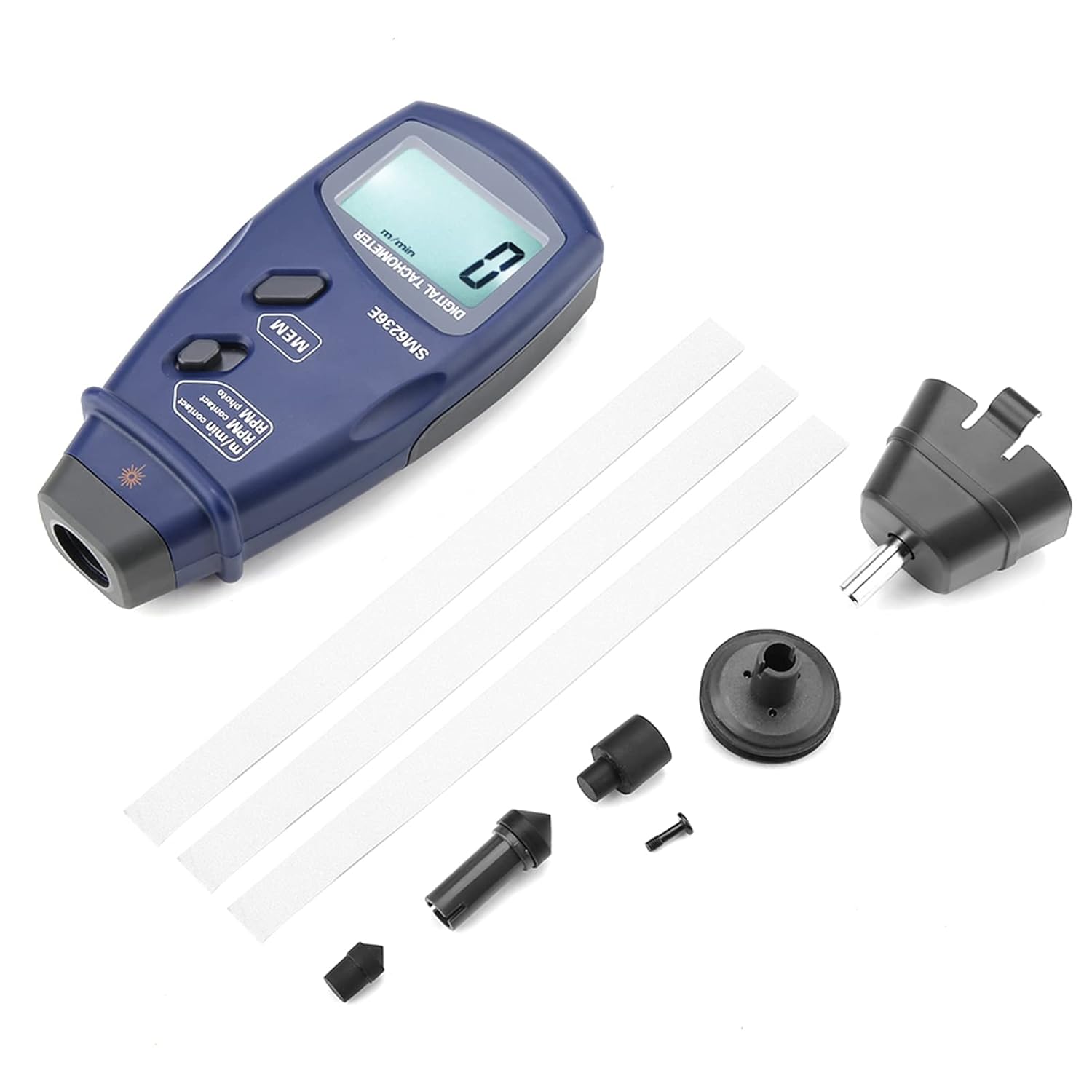

SM6236E Digital Photo Tachometer, Digital Rotation Tester with Automatic Store Function, Handheld Tachometer with 5 Digits 18mm Backlight LCD

This item adopts the microcomputer (CPU) technique and junctiondigital technique for one instrument which combines Photo Tach (RPM) and touchTach (RPM, m/min).Features:1. Adopting advanced technologies to achieve touch or non-touchmeasurement of rotation speed and line speed.2. Speed sensor with groove measuresspeed and length of wire, cable and ropeconveniently.3. Automatically store max value, min value and the last measurement value.4. touch accessory and photoelectric accessory can be converted mutually at any time to achieve multi-purpose use.5. Automatically prompt when the voltage of power supply is lower than the specified value.6. Large LCD screen for clear reading.7. Wide measurement range and high resolution.Specification:Model: SM6236EMeasuring Range:Photoelectric Tach: 2.5 ~ 99999RPMtouch Tach: 0.5 ~ 19999RPMtouch Line Speed: 0.05 ~ 1999.9m/minResolution:Photoelectric Tach: 0.1RPM (2.5 ~ 999.9RPM), 1RPM(over 1000RPM)touch Tach: 0.1RPM(0.5 ~ 999.9RPM), 1RPM(over 1,000RPM)touch Line Speed: 0.01m/min(0.05 ~ 99.99m/min), 0.1m/min(over100m/min)Display: 5 digits 18mm backlight LCDAccuracy: ±(0.05%+1digit)Sampling Time: 0.5 sec(over 60RPM)Range Selection: Auto-RangingMemory: Max. value, Min. value, Last value. 96 data storageTime Base: 6MHz Quartz CrystalDetecting Distance: 50 to 500mm (digital)3 x1.5V AA (NOTincluded)Power Consumption: about 50mAColor: BlackSize (L*W*H): 21*7.4*3.7cm / 8.27*2.91*1.46inWeight: Approx. 436g/15.4ozPackage list:1 * Tachometer1 * User Manual3 * Reflective Paper1 * Screw4 * Tach Accessories1 * Photoelectric Tach Head1 * Storage CaseNote:1. Due to the difference between monitors and light effect, thepictures may not reflect the actualcolor of the item.2. Please allow slight error due to manual measurement. Thanks foryour understanding.

• AUTOMATIC STORAGE: The digital photo tachometer automatically captures and stores key measurement values, including the highest, lowest, and most recent readings. With memory for 96 data entries (The tachometer starts to store data after refreshing the measuring data)
• VERSATILE MEASUREMENT MODES: This digital rotation tester easily switches between touch and touchless measurement methods. The straightforward selection feature allows flexible application in various industrial testing situations, eliminating the need for separate devices
• CLEAR VISUAL DISPLAY: The handheld tachometer features an easy-to-read LCD screen with white illumination, ensuring visibility in all lighting conditions. The display includes helpful indicators like quantity of electricity warnings for continuous use
• PRECISION MEASUREMENT TECHNOLOGY: The handheld tachometer utilizes advanced optical detection with a 50-500mm working range. It maintains exceptional measurement accuracy for both rotational speed and linear movement, delivering dependable results every time
• WIDE-RANGING UTILITY: This photoelectric tachometer adapts to various industrial applications, including cable measurement and machinery maintenance. The included groove sensor and interchangeable accessories enable flexible use across different production scenarios
