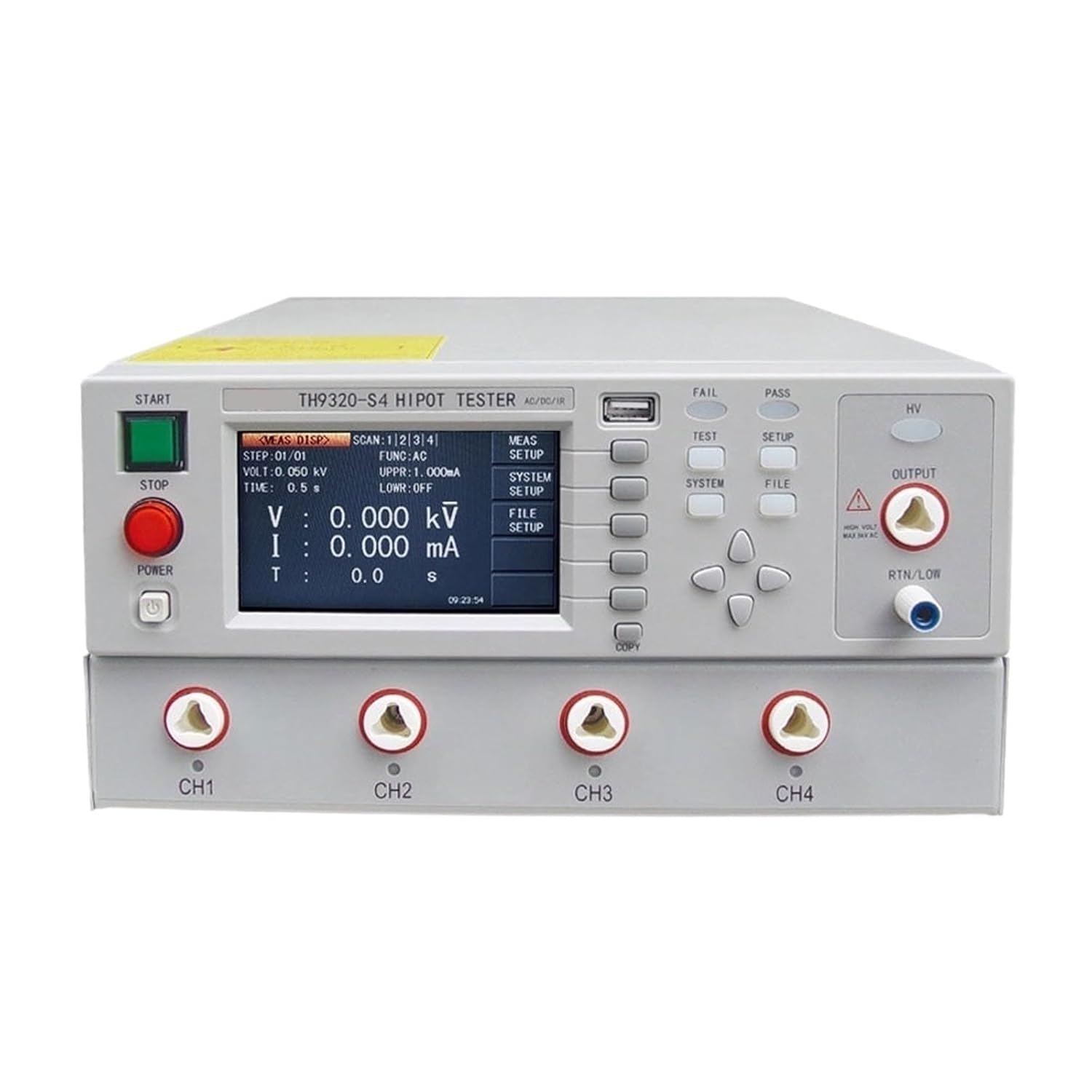

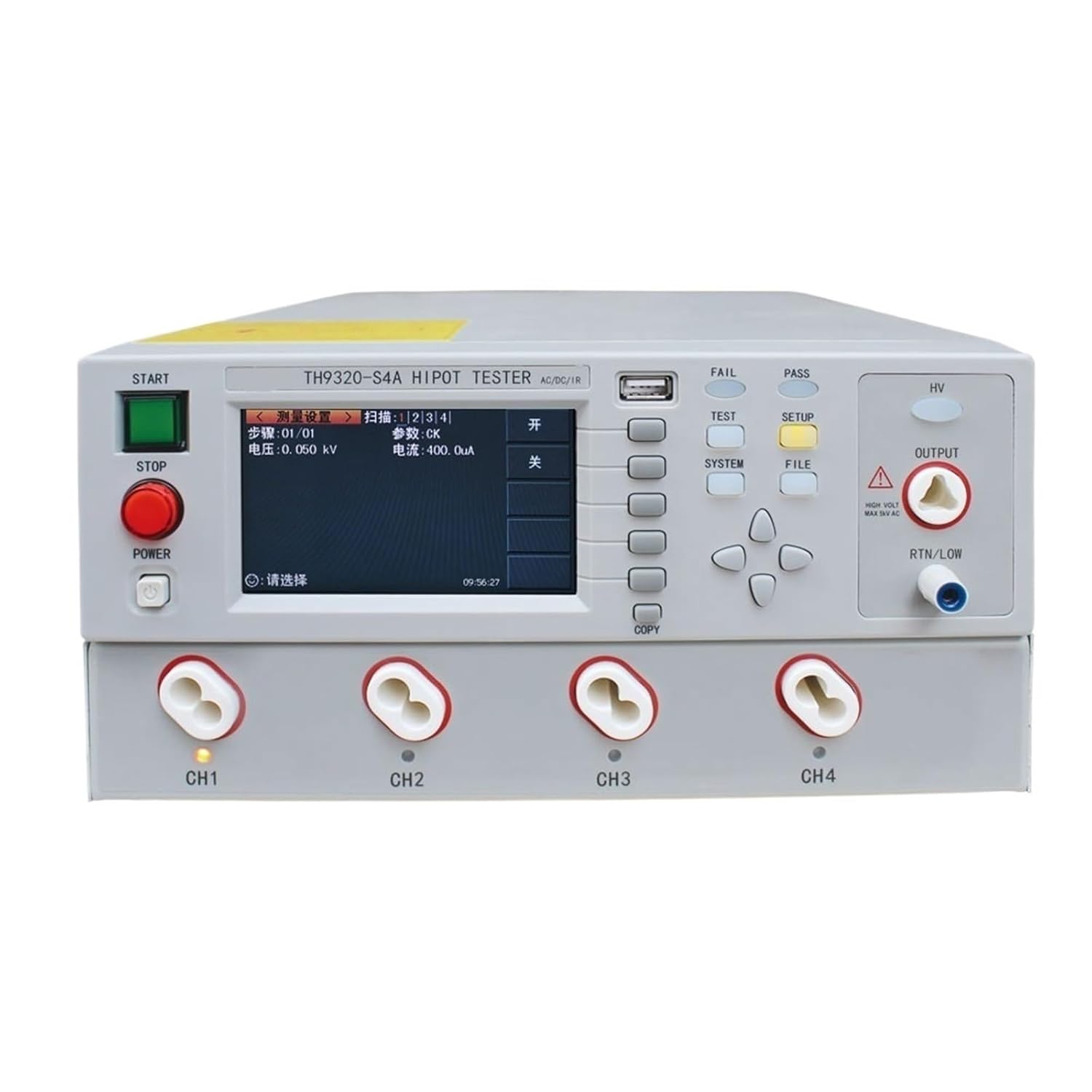

TH9320 AC/DC Hi-Pot Tester Voltage Withstand Insulation Tester Support Single/Multi-Channel Contact Inspection Function

TH9320 AC/DC 4-Channel / 8-Channel Hi-Pot Tester Voltage Withstand Insulation Tester Support Single/Multi-channel Contact Inspection FunctionFeatures:- RGB true color TFT LCD display with a resolution of 480x272; support Chinese and English operation interface.- Powerful protection mode, immediately cutting off output upon electric shock, ensuring user safety.- Self locking socket, insert the output button and turn right to lock.- Flexible and convenient set, up to 20 steps can be set, and parameter values can be freely changed through the up and down keys.- Keylock button lock function locks the interface to prevent accidental operation.- Powerful file management function.- Data recording and screenshot functions. Use the "COPY" button and "USB flash drive" to achieve screenshot function and data recording for convenient storage.- Support zeroing function.- Rich interfaces: RS232, USB DEVICE, USB HOST, HANDLER, PLC.Main Parameter:- Product name: TH9320 series AC/DC voltage withstand insulation tester- Interface: 480x272 dots, TFT-LCD display- Output voltage: 0.10kV - 5.00kV (AC)/0.10kV - 6.00kV (DC)- Current testing range: 0mA - 20.00mA (AC)/0uA - 10.00mA (DC)- Resistance test range: 0.1M - 10.0G- Rapid discharge and arc detection function- Enhanced human body protection function: electric shock protection function- Can store 20 test steps.TH9320-S4/TH9320-S4 Specification:- Model: TH9320-S4/TH9320-S4-Scanning interface: 4 channel/8 channelHi-Pot Test:- Output voltage:AC: 0.10kV - 5.00kV, ±2%DC: 0.10kV - 6.00kV, ±2%- Current testing range:AC: 0 - 20.00mA ±(2% read value + 5 digits)DC: 0 - 10.00mA ±(2% read value + 5 digits)Fast discharge function: automatic discharge after the test is completed (DCW)Insulation Resistance Test:- Output voltage: 0.10kV - 1.00kV, ±2%- Resistance testing range: 0.1Mohm - 10.0Gohms- Resistance testing precision: 0.1Mohm - 999Mohms, ±10%; 1.00Gohms - 10.0Gohms, ±20%- Discharge function: automatic discharge after the test is completedARC Detection:- Testing range:AC: 1 - 9 level (factory default value is 5) (corresponding to current of 20mA, 18mA, 16mA, 14mA, 12mA, 10mA, 7.7mA, 5.5mA, 2.8mA)DC: 1 - 9 levelGeneral Parameters:- Voltage rising time: 0.1s - 999.9s- Testing time setting (AC/DC): 0.2s - 999.9s- Voltage drop time: 0.1s - 999.9s- Waiting time (IR): 0.2s - 999.9s- Time precision: ±(1% + 0.1s)- Storage: 20 testing files, each of them support 20 steps setting- Contact inspection function: multi-channel contact inspection functionTH9320-S4A/TH9320-S8A Specification:- Model: TH9320-S4A/TH9320-S8A- Scanning interface: 4 channel/8 channelGeneral Parameters:- Voltage rising time: 0.1s - 999.9s- Testing time setting (AC/DC): 0.2s - 999.9s- Voltage drop time: 0.1s - 999.9s- Waiting time (IR): 0.2s - 999.9s- Time precision: ±(1% + 0.1s)- Storage: 20 testing files, each of them support 20 steps setting- Contact inspection function: single channel contact inspection functionPackage Included:- 1 x Hi-Pot Tester- 1 x Power Cable- 1 x TH90003R Voltage Withstand Testing Cable- 5 x TH90003B Voltage Withstand Testing CablesMeasurement Accuracy : 0.015% + 10 mAS : 93894
