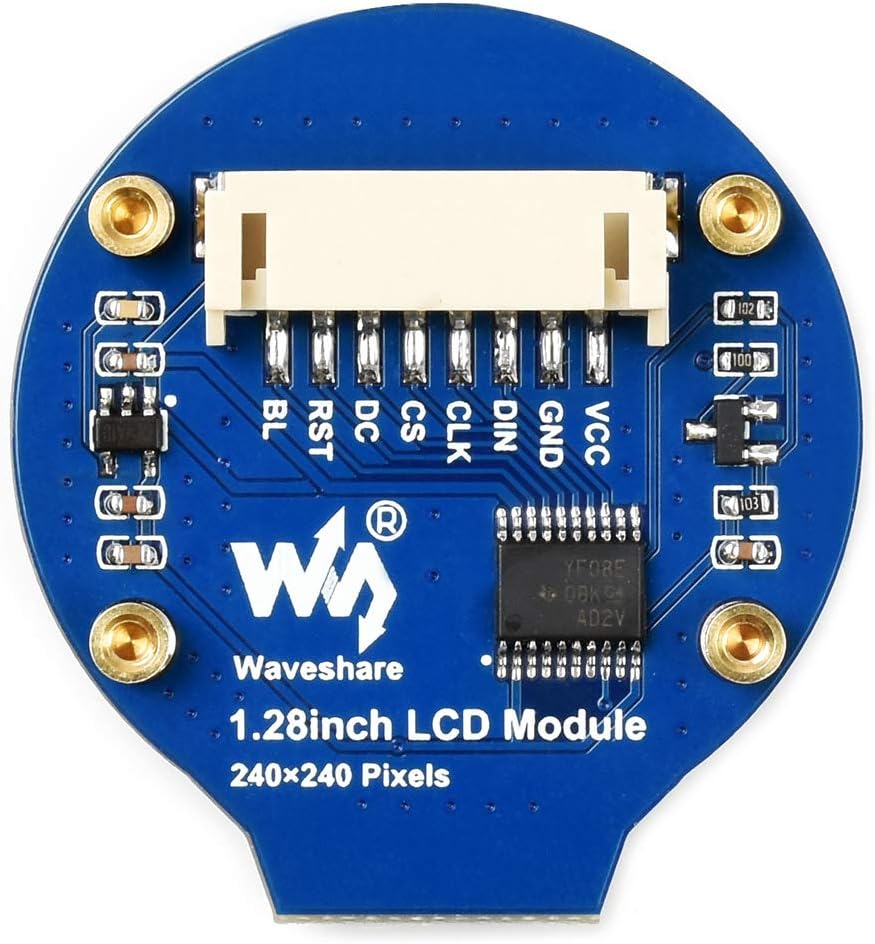

waveshare 1.28 inch Round LCD Display for Arduino/Jetson Nano/Raspberry Pi/STM32, 240×240 IPS Screen Monitor 65K RGB Colors, Using SPI Bus, Embedded GC9A01 Driver
Product details
| Management number | 217010590 | Release Date | 2026/04/19 | List Price | $8.24 | Model Number | 217010590 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Overview 1.28 inch Round LCD Display Module, IPS screen, 65K RGB colors, 240×240 resolution, using SPI bus, embedded GC9A01 driver, comes with examples for Raspberry Pi, Arduino, STM32, etc. Features 1. 240×240 resolution, 65K RGB colors, clear and colorful displaying effect 2. This 1.28 inch Round LCD Display uses a 4-line SPI interface for reducing GPIO and fast speed, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32. 3. The driver used in this LCD is GC9A01, with a resolution of 240RGB×240 dots and 129600 bytes of GRAM inside. This LCD supports 12-bits/16-bits/18-bits data bus by MCU interface, which are RGB444, RGB565, RGB666. 4. Comes with development resources (examples for Raspberry Pi/Arduino/STM32) Specification Operating voltage: 3.3V/5V Interface: SPI LCD type: IPS Controller: GC9A01 Resolution: 240(H)RGB x 240(V) Display size: Φ32.4mm Pixel size: 0.135（H）x0.135（V）mm Dimension: 40.4×37.5(mm)Φ37.5(mm) Package Content 1.28inch LCD Module x1 20cm cable x1 Note Development Resources and Technical Support are provided, please contact us if you have any problem.
- 1.28" LCD 240×240 round high-definition screen display module for Raspberry Pi/Jetson Nano/Arduino/STM32
- 65K RGB colors monitor, IPS screen, clear and colorful displaying effect
- Controlled via 4-wire SPI Bus, minimizes required IO pins, embedded GC9A01 driver, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
- Operating voltage: 3.3V/5V, Dimension: 40.4×37.5(mm) Φ37.5(mm)
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
| UPC | 755291677669 |
|---|---|
| Brand | waveshare |
| Color | blue |
| Shape | Round |
| Voltage | 5 Volts (DC) |
| Model Name | RS1682 |
| Resolution | 240x240 |
| Is Electric | Yes |
| Item Weight | 0.02 Kilograms |
| Pixel Pitch | 0.135 |
| Screen Size | 1.28 Inches |
| Aspect Ratio | 1:1 |
| Manufacturer | Waveshare |
| Mounting Type | Wall Mount |
| Screen Finish | Glossy |
| Contrast Ratio | High |
| Native Resolution | 240 x 240 |
| Compatible Devices | Raspberry Pi, Jetson Nano, Arduino, STM32 |
| Display Technology | LCD |
| Additional Features | Portable |
| Connectivity Technology | GPIO |
| Item Dimensions D x W x H | 1.48"D x 1.59"W x 1.48"H |
| Display Resolution Maximum | 240 x 240 |
| Total Number of HDMI Ports | 4 |
